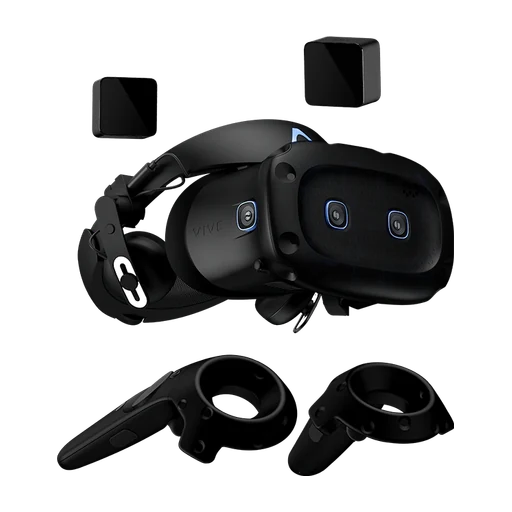

HTC VIVE Cosmos Elite — specification and verdict
The Cosmos Elite pairs 1440x1700 LCD panels per eye at 90 Hz with the external-tracking faceplate, so all six degrees of freedom come from two VIVE Base Station 1.0 units rather than cameras on the headset. Text on labels and instrument faces is readable at that resolution, but the RGB-stripe LCD is a 2020 panel and fine print in a procedure sheet still needs to be scaled up. HTC quotes a maximum 110 degree field of view; VRcompare measured 97 degrees horizontally visible with 79.57 degrees of binocular overlap, which is the number that matches what a trainee actually sees. There is no eye tracking, no hand tracking and no face tracking, so every interaction runs through the two VIVE Controllers with their trackpad, dual-stage trigger and grip buttons. The flip-up visor lets a trainee glance at a real workpiece without removing the headset, and IPD is set by hand between 61 and 72 mm.
This is a tethered device: each seat needs a Windows 10 or 11 PC with DisplayPort 1.2 and a USB 3.0 port, a GTX 970 class GPU or better, plus two mains-powered base stations mounted above a room-scale area of roughly 3.5 by 3.5 m. That mounting work, not the headset, is the real cost of a room. There is no vendor MDM and no kiosk mode, so content is managed as Windows software on each PC, and the foam facial interface is the only hygiene part you can swap between trainees. HTC withdrew the Cosmos line from the US in July 2023 and no longer lists it for sale in Poland or Germany, so a fleet today means used units and no spare-parts guarantee.
Do not buy the Cosmos Elite for a training programme in 2026. It is discontinued, it needs a VR-capable PC and two mounted base stations per seat, and our Android-based standalone courses do not run on it at all. If you already own a room of them for Steam-based simulation, keep using them until the base stations or controllers fail; for new deployments choose a standalone headset instead.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 115°, from 26 models that publish the figure.
Median for this class: $799, from 32 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- HTC VIVE
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2020-02-20
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2020
- AvailabilityWhether you can still order it new today.
- Discontinued in 2023
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: Specifications checked against the manufacturer's page on 2026-08-08.
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- LCD
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Optics: Specifications checked against the manufacturer's page on 2026-08-08.
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 1440x1700
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 90 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 110°
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: Specifications checked against the manufacturer's page on 2026-08-08.
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- Weight: Specifications checked against the manufacturer's page on 2026-08-08.
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- 97° horizontal · 94° vertical
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- 97.62° horizontal · 103.03° vertical · 109.31° diagonal
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- ≈79.57°*VRcompare
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- RGB stripe · 3 subpixels per pixel
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: Specifications checked against the manufacturer's page on 2026-08-08.
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Passthrough: Specifications checked against the manufacturer's page on 2026-08-08.
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- 61–72 mm
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: Specifications checked against the manufacturer's page on 2026-08-08.
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: Specifications checked against the manufacturer's page on 2026-08-08.
- DimensionsWidth, height and depth of the device itself.
- Dimensions: Specifications checked against the manufacturer's page on 2026-08-08.
- Weight with strapWith the strap it ships with — the weight you actually wear.
- ≈702 g*VRcompare
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Rigid strap with a dial
- MaterialsShell and facial interface, in the vendor’s words.
- plastic · foam facial interface
- ColoursColours the manufacturer sells it in.
- Black · Blue
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: Specifications checked against the manufacturer's page on 2026-08-08.
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- external base-station 6DoF (2x VIVE Base Station 1.0, SteamVR tracking)
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Required
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking rateHow often position is recalculated. Higher is steadier.
- ≈1000 Hz*VRcompare
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- No
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- No
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- None
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- Yes
- Controller modelThe manufacturer's own name for the controller.
- VIVE Controller
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- None
- Controller inputsButtons, sticks and triggers the controller offers.
- multifunction trackpad · dual-stage trigger · grip buttons · system button · menu button
- Controller hapticsVibration feedback in the hand.
- Yes
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Built-in rechargeable
- Controller weightOne controller, as the vendor weighs it.
- 309 g
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: Specifications checked against the manufacturer's page on 2026-08-08.
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: Specifications checked against the manufacturer's page on 2026-08-08.
- CPUCores and clocks, where the manufacturer publishes them.
- CPU: Specifications checked against the manufacturer's page on 2026-08-08.
- GPUThe graphics part of the chip.
- GPU: Specifications checked against the manufacturer's page on 2026-08-08.
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- Memory: Specifications checked against the manufacturer's page on 2026-08-08.
- SD card slotWhether storage can be added with a card.
- SD card slot: Specifications checked against the manufacturer's page on 2026-08-08.
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- Battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- Battery capacity (mAh): Specifications checked against the manufacturer's page on 2026-08-08.
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: Specifications checked against the manufacturer's page on 2026-08-08.
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: Specifications checked against the manufacturer's page on 2026-08-08.
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: Specifications checked against the manufacturer's page on 2026-08-08.
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- No
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: Specifications checked against the manufacturer's page on 2026-08-08.
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: Specifications checked against the manufacturer's page on 2026-08-08.
- PortsPhysical sockets and charging contacts.
- DisplayPort 1.2 · USB 3.0
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: Specifications checked against the manufacturer's page on 2026-08-08.
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: Specifications checked against the manufacturer's page on 2026-08-08.
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: Specifications checked against the manufacturer's page on 2026-08-08.
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Built-in speakers
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: Specifications checked against the manufacturer's page on 2026-08-08.
- Price bandThe band it sits in, rather than a price that goes stale.
- Premium
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $899
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: Specifications checked against the manufacturer's page on 2026-08-08.
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: Specifications checked against the manufacturer's page on 2026-08-08.
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
Who this device is for
It suits a lab that already owns SteamVR base stations and wants PC-rendered simulation with sub-millimetre positional stability, for example CAD review or a bespoke Unity simulator. It is the wrong device for anyone who needs headsets that a trainer can carry into a plant, hand over and manage centrally.
What is missing, and what the manufacturer does not publish
HTC never published a headset weight, dimensions, lens type or refresh options beyond 90 Hz; the 702 g figure with strap comes from VRcompare, not the maker. HTC and VRcompare also disagree on optics: the spec page claims a maximum 110 degree field of view while VRcompare lists 97 degrees horizontally visible. HTC has published no end-of-support or driver-support date for the Cosmos line, so how long SteamVR and the Cosmos software keep working is unknown. VRcompare lists dual colour passthrough cameras, which belong to the standard Cosmos faceplate rather than the Elite external-tracking one, so we left passthrough off the record.
HTC VIVE Cosmos Elite — frequently asked questions
- Does the VIVE Cosmos Elite work without base stations?
- No. The Elite ships with the external-tracking faceplate, which has no tracking cameras of its own, so the two VIVE Base Station 1.0 units in the box have to be mounted and powered before the headset tracks in 6DoF. The standard Cosmos faceplate does inside-out tracking, but swapping it means buying a different faceplate.
- Can I run Skillsive VR courses on a Cosmos Elite?
- No. Our courses are Android applications that run on standalone headsets, and the Cosmos Elite is a PC-tethered display that renders from a Windows machine over DisplayPort 1.2. There is no way to install our courses on it. For a training fleet, pick a standalone Android headset instead.
- Is the VIVE Cosmos Elite still sold in 2026?
- No. HTC quietly withdrew the Cosmos line in the US in July 2023, after it had already been out of stock for months, and it is not offered in Poland or Germany today. The launch kit with controllers and both base stations was 899 USD; anything you find now is a used unit sold without HTC warranty support.
