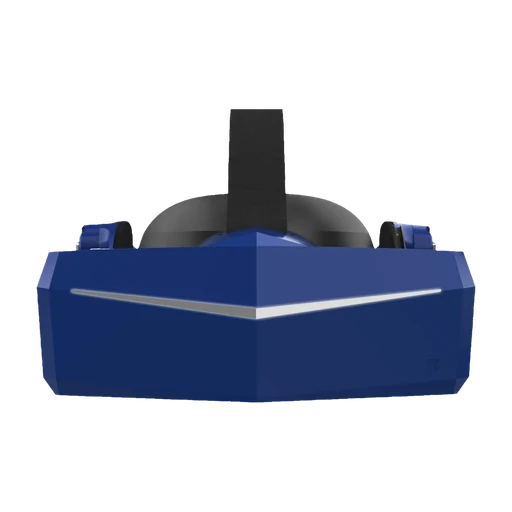

Pimax Vision 8K Plus — specification and verdict
The Vision 8K Plus puts 3840x2160 per eye behind Fresnel optics and spreads it across 154 degrees of measured horizontal view, which is the widest thing most trainees will ever put on. That width comes at a cost: the panels are fed an upscaled image rather than a native one, so fine print, gauge markings and small labels stay softer than the pixel count suggests. Binocular overlap is 86.79 degrees, so the far edges are effectively monocular and anything a trainee must read belongs in the middle of the scene. It runs at 90 Hz with an 110 Hz mode, needs a DisplayPort 1.4 gaming PC and two SteamVR 2.0 base stations, and it does not run our Android courses at all.
Nothing about this headset scales to a fleet. Every station needs its own PC with DisplayPort 1.4 and USB 3.0, two mounted SteamVR 2.0 base stations and a calibrated play space, and the Valve Index controllers are not in the box below the 1199 USD bundle. There is no vendor MDM, no kiosk mode and no enterprise licensing programme behind it in 2026, so provisioning is whatever your Windows and SteamVR administration already does. Hygiene means wiping the foam facial interface between users, and at 750 grams with the strap it is heavy enough that back-to-back sessions need breaks. Pimax has no service presence in Poland or Germany beyond ordinary consumer support channels.
Do not buy it for training. Pimax's own outlet listing is sold out at 630 USD, the device is discontinued, and our courses are Android standalone applications that cannot run on a PC-tethered SteamVR headset. If a very wide field of view is genuinely the requirement, look at Pimax's current tethered line instead, and if the requirement is delivering our training, use a standalone headset.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: $899, from 45 models that publish the figure.
Controllers and hand tracking
Valve Index Controller
6DoF
Straps to the palm, so you can open your hand without dropping it — still the reference for throwing and catching. 87 sensors read all five fingers and how hard you squeeze, and base stations rather than the headset do the tracking.
Sold separatelyHow it is tracked
Base stations (Lighthouse)
Base stations sweep the room with lasers. Coverage comes from where the boxes are mounted rather than from what the headset can see — occlusion stops being a problem, and the boxes are a second purchase.
The controller itself
- Controller weight
- 196 g
- Controller power
- Built-in rechargeable
- Controller haptics
- Yes
- Finger tracking on the controller
- Full
- Controller inputs
- capacitive thumbstick · trackpad · capacitive face buttons · capacitive index trigger · pressure-sensitive grip
Other controllers
Any SteamVR (Lighthouse) controller
Index Controller · HTC Vive controller
Bare hands
No hand tracking — a controller is the only way in.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Pimax
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2018-11-01
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2019
- AvailabilityWhether you can still order it new today.
- Discontinued
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: not published by the manufacturer
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- LCD
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Fresnel lenses
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- ≈3840x2160*VRcompare spec sheet
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- ≈90/110 Hz*VR & AR Wiki
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- ≈154° horizontal*VRcompare measured visible field of view
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: not published by the manufacturer
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: not published by the manufacturer
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- ≈500 g*VRcompare spec sheet
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- 154° horizontal · 105° vertical
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- 159.21° horizontal · 152.17° diagonal
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- ≈86.79°*VRcompare spec sheet
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: not published by the manufacturer
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: not published by the manufacturer
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- RGB stripe · 3 subpixels per pixel
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: not published by the manufacturer
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Passthrough: not published by the manufacturer
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: not published by the manufacturer
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- 60–72 mm
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: not published by the manufacturer
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: not published by the manufacturer
- DimensionsWidth, height and depth of the device itself.
- ≈280 × 108 × 136 mm*VRcompare spec sheet
- Weight with strapWith the strap it ships with — the weight you actually wear.
- ≈750 g*VRcompare spec sheet
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Headband
- MaterialsShell and facial interface, in the vendor’s words.
- plastic · foam facial interface
- ColoursColours the manufacturer sells it in.
- Black · Blue
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: not published by the manufacturer
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- SteamVR 2.0 base stations
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Required
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: not published by the manufacturer
- Tracking rateHow often position is recalculated. Higher is steadier.
- ≈1000 Hz*VRcompare spec sheet
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- No
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- No
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- None
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- No
- Controller modelThe manufacturer's own name for the controller.
- Valve Index Controller
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Controller tracking methodWhat establishes where the controller is. It decides whether the controller keeps working behind your back or down at your hip — “6DoF” on its own does not say.
- Base stations (Lighthouse)
- Other controllersWhether the headset works with controllers other than the ones it ships with.
- Any SteamVR (Lighthouse) controller — Index Controller · HTC Vive controller
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Full
- Controller inputsButtons, sticks and triggers the controller offers.
- capacitive thumbstick · trackpad · capacitive face buttons · capacitive index trigger · pressure-sensitive grip
- Controller hapticsVibration feedback in the hand.
- Yes
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Built-in rechargeable
- Controller weightOne controller, as the vendor weighs it.
- 196 g
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: not published by the manufacturer
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- No
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: not published by the manufacturer
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: not published by the manufacturer
- PortsPhysical sockets and charging contacts.
- DisplayPort 1.4 · USB 3.0 · 3.5 mm headphone jack
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: not published by the manufacturer
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: not published by the manufacturer
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: not published by the manufacturer
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Built-in speakers · Headphone jack
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: not published by the manufacturer
- Price bandThe band it sits in, rather than a price that goes stale.
- Premium
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $899
- Price by configurationWhat each configuration cost at launch.
- Headset only $899 · With Index controllers $1199 · With controllers and two base stations $1449
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- $630
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): not published by the manufacturer
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): not published by the manufacturer
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): not published by the manufacturer
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): not published by the manufacturer
Who this device is for
This was aimed at flight, driving and space simulator users who care more about peripheral vision than about reading text, and who already own a strong gaming PC and SteamVR base stations. For a training department it is the wrong shape: it is tethered, it needs mounted hardware in every room, and one trainee needs one full PC workstation.
What is missing, and what the manufacturer does not publish
Pimax's live product page is JavaScript-gated and returns no specification table, so almost every figure here comes from VRcompare rather than the manufacturer, and the manufacturer's marketing quotes a much larger diagonal field of view than the measured horizontal number in this record. Third-party sources also disagree with each other on the bare headset weight and on the top of the IPD range. Pimax has never published an end-of-support date, a firmware support window or a Pimax Play compatibility cutoff for the Vision series, so how long the headset keeps working with current drivers is unknown.
Pimax Vision 8K Plus in independent reviews
Reviews we consider worth your time, each with a note on what the reviewer actually tested and why it matters for a training rollout. We do not own this hardware, so the tests are theirs — the reading of them is ours.
- Tyriel Wood - VR Tech2020
A review of the consumer version once it finally reached the market, and it lands on comfort as the headline improvement. For a headset in this weight class, comfort is not a side note.
Watch on YouTube - Tyriel Wood - VR Tech2019
The earlier hands-on with the same headset, and the title captures the split verdict better than a score would. Read it beside the later review to see what changed between preview and retail.
Watch on YouTube - Cas and Chary XR2020
Asks one question and answers it at the end: is this actually an improvement on the older Pimax headsets it replaces. With this maker's release cadence, that is the only question that matters.
Watch on YouTube
Nothing is sent to YouTube until you press play. Once you do, Google receives your IP address and device data and may process them outside the EEA — see our privacy policy for the details.
Pimax Vision 8K Plus — frequently asked questions
- Can you still buy a Pimax Vision 8K Plus in 2026?
- Not new from Pimax. The company's own outlet listing for the Outlet 8K PLUS KDMAS Edition shows sold out at 630 USD, and the model is discontinued in favour of Pimax's newer tethered headsets. Anything you find now is used stock from resellers, without a manufacturer warranty.
- Does the Pimax Vision 8K Plus need SteamVR base stations?
- Yes. It has no inside-out cameras and requires two SteamVR 2.0 base stations mounted in the room, which is why the full kit launched at 1449 USD against 899 USD for the headset alone. Every training room would need its own pair mounted and powered, plus a PC with DisplayPort 1.4.
- Is the Pimax Vision 8K Plus really 4K per eye?
- The panels are 3840x2160 per eye, but they are fed an upscaled image rather than a native one, so the perceived sharpness is well below what the number implies. Spread over 154 degrees of horizontal view, that means small text and instrument labels read worse than on headsets with far fewer pixels and a narrower field of view.
Compare this device
Consider these too
The nearest devices in the same class, ranked by availability and launch price — not by our opinion of them.
Specifications checked against the manufacturer's page on 2026-08-08. Manufacturer's specification
