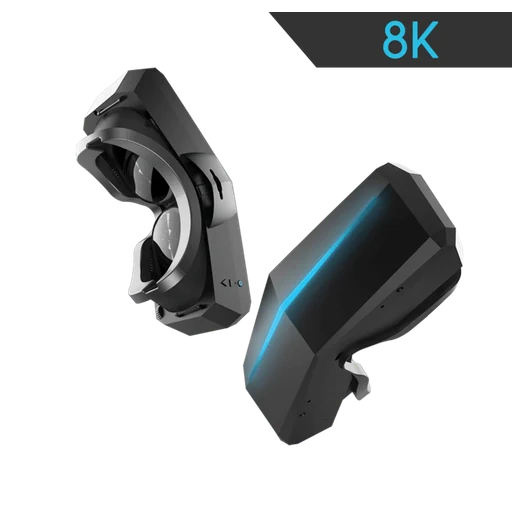

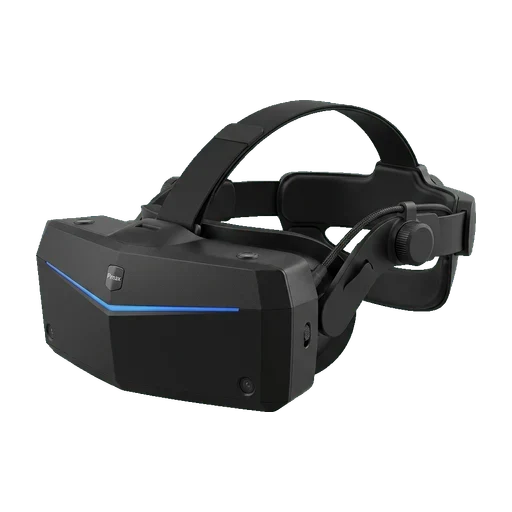

Pimax 8K — specification and verdict
The Pimax 8K is the headset that made field of view a specification people argued about. Two hundred degrees diagonal - 170 horizontal, 130 vertical - is roughly double what a Quest offers, and at 3840 by 2160 per eye it carried more pixels than anything else on sale. The name is marketing arithmetic: it counts both panels together, so this is not an 8K display per eye. What the numbers hide is everything else. It shipped at 80 Hz rather than the 75 or 90 promised on the preorder page, it needs SteamVR base stations and controllers that are not in the box, and Pimax's own comparison pages repeat spec strings across siblings often enough that the safest reading of any figure is the one on that model's own page.
Three purchases, not one. The 899 dollars bought a headset and Pimax says so plainly - it does not include controllers or base stations - so add SteamVR Lighthouse 1.0 or 2.0 units and controllers on top, plus a PC with DisplayPort 1.4 and a graphics card Pimax pitched at GTX 1080 Ti class. There is no device management, no kiosk mode and no enterprise tier. Pimax never published an end-of-life notice; the product simply left the store, and by late 2019 its own collection page returned no products at all.
Not for training and not for buying now. Our courses are Android standalone builds; this is SteamVR on a PC, so they never ran on it. What it is worth is context: it proves how far field of view can be pushed and what that costs in distortion, PC load and price. If wide field of view genuinely matters to your scenario, Pimax's later Crystal line is where the idea continued with the wrinkles smoothed out.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 110°, from 39 models that publish the figure.
Median for this class: 500 g, from 26 models that publish the figure.
Median for this class: $899, from 45 models that publish the figure.
Controllers and hand tracking
Controller
6DoF
Sold separatelyHow it is tracked
Base stations (Lighthouse)
Base stations sweep the room with lasers. Coverage comes from where the boxes are mounted rather than from what the headset can see — occlusion stops being a problem, and the boxes are a second purchase.
Other controllers
Any SteamVR (Lighthouse) controller
Index Controller · HTC Vive controller
Bare hands
No hand tracking — a controller is the only way in.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Pimax
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- Announced: not published by the manufacturer
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- Released: not published by the manufacturer
- AvailabilityWhether you can still order it new today.
- Discontinued
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: not published by the manufacturer
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- LCD
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Fresnel lenses
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 3840x2160
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 80 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 200° diagonal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: not published by the manufacturer
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: not published by the manufacturer
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- 470 g
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- Visible field of view: not published by the manufacturer
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: not published by the manufacturer
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: not published by the manufacturer
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: not published by the manufacturer
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: not published by the manufacturer
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- Subpixel layout: not published by the manufacturer
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: not published by the manufacturer
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- None
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: not published by the manufacturer
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- IPD range: not published by the manufacturer
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: not published by the manufacturer
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: not published by the manufacturer
- DimensionsWidth, height and depth of the device itself.
- Dimensions: not published by the manufacturer
- Weight with strapWith the strap it ships with — the weight you actually wear.
- Weight with strap: not published by the manufacturer
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Headband
- MaterialsShell and facial interface, in the vendor’s words.
- Materials: not published by the manufacturer
- ColoursColours the manufacturer sells it in.
- Colours: not published by the manufacturer
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: not published by the manufacturer
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- outside-in 6DoF (SteamVR base stations 1.0 or 2.0, sold separately)
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Required
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: not published by the manufacturer
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: not published by the manufacturer
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: not published by the manufacturer
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- No
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- None
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- No
- Controller modelThe manufacturer's own name for the controller.
- Controller model: not published by the manufacturer
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Controller tracking methodWhat establishes where the controller is. It decides whether the controller keeps working behind your back or down at your hip — “6DoF” on its own does not say.
- Base stations (Lighthouse)
- Other controllersWhether the headset works with controllers other than the ones it ships with.
- Any SteamVR (Lighthouse) controller — Index Controller · HTC Vive controller
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Finger tracking on the controller: not published by the manufacturer
- Controller inputsButtons, sticks and triggers the controller offers.
- Controller inputs: not published by the manufacturer
- Controller hapticsVibration feedback in the hand.
- Controller haptics: not published by the manufacturer
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Controller power: not published by the manufacturer
- Controller weightOne controller, as the vendor weighs it.
- Controller weight: not published by the manufacturer
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: not published by the manufacturer
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- No
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: not published by the manufacturer
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: not published by the manufacturer
- PortsPhysical sockets and charging contacts.
- DisplayPort 1.4 · USB Type-A 3.0
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: not published by the manufacturer
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: not published by the manufacturer
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: not published by the manufacturer
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Headphone jack
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: not published by the manufacturer
- Price bandThe band it sits in, rather than a price that goes stale.
- Premium
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $899
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: not published by the manufacturer
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: not published by the manufacturer
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): not published by the manufacturer
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): not published by the manufacturer
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): not published by the manufacturer
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): not published by the manufacturer
Who this device is for
Simulation enthusiasts and anyone researching how wide field of view actually behaves. In 2018 the buyer was a flight or racing simmer who would trade comfort, price and PC headroom for peripheral vision. Not a fleet device and never sold as one.
What is missing, and what the manufacturer does not publish
Pimax published no release date or year for this model at level 1, so none is recorded - the preorder page was live in January 2018 and the store carried customer reviews by May 2019, which brackets it without dating it. The Body Size figure of 28.1 by 10.8 by 13.6 carries no unit anywhere on the page: as centimetres it is plausible, as millimetres impossible, so it is not converted. There is no IPD range and no end-of-life notice. Two warnings for anyone re-checking: the pimax-8k-series URL was later reused for the Vision series, so a scrape without a pinned timestamp ingests the wrong headset entirely, and the refresh rate on the preorder page promised 75 or 90 Hz which shipping hardware never delivered.
Pimax 8K in independent reviews
Reviews we consider worth your time, each with a note on what the reviewer actually tested and why it matters for a training rollout. We do not own this hardware, so the tests are theirs — the reading of them is ours.
- GizmoSlipTech2018
An early hands-on, before the shipping hardware settled. Read it against the shipping specification rather than as a description of what buyers received - the preorder-era claims and the delivered product differ, notably on refresh rate.
Watch on YouTube - MRTV - MIXED REALITY TV2018
Reviews the 8K against the 5K Plus, which is the comparison that actually mattered: same shell, same price bracket, different panels. If you are trying to work out which Pimax of this era does what, start here.
Watch on YouTube - Linus Tech Tips2019
The sceptical one, and the record is better for carrying it. Pimax has a long history of shipping behind its promises, and a first-impressions piece with that framing is a useful counterweight to the enthusiast coverage.
Watch on YouTube
Nothing is sent to YouTube until you press play. Once you do, Google receives your IP address and device data and may process them outside the EEA — see our privacy policy for the details.
Pimax 8K — frequently asked questions
- Is the Pimax 8K really 8K?
- No. It has 3840 by 2160 pixels per eye, and the name counts both panels together to reach a figure that sounds like a television standard. Per eye that is a little over 4K wide, which was still more than anything else on sale in 2018. It is worth knowing because the same arithmetic runs through the rest of the range and makes cross-brand comparison misleading unless you check what a number is counting.
- What refresh rate does the Pimax 8K actually run at?
- Eighty hertz. The preorder page in 2018 promised 75 or 90 hertz per eye with Brainwarp pushing higher, and that was never delivered - every shipping page says 80. Confusingly, Pimax's own comparison page still carries marketing prose about a smooth 90 frames per second, but that belongs to the 5K Plus card next to it, and the 8K's own spec row on the same page says 80. When two figures appear on one Pimax page, the model's own row is the one to trust.
