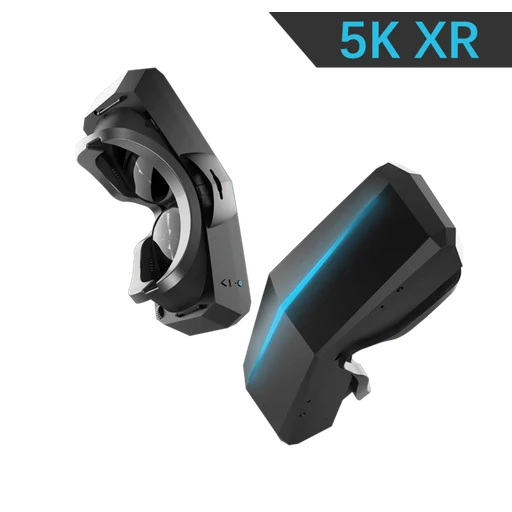

Pimax 5K XR — specification and verdict
The 5K XR is the one Pimax of this era built around black level rather than pixel count. It shares the shell, the 200-degree diagonal field of view, the Lighthouse tracking and the price with its siblings, and differs in exactly one respect that matters: OLED panels at 2560 by 1440 per eye instead of the customised LCD in the 5K Plus and the 8K. For dark scenes - night flying, a shut-down control room, anything where grey black ruins the illusion - that swap is the whole argument. It costs resolution against the 8K and it costs the same 899 dollars, which is why the three models were genuinely hard to choose between and why Pimax's own comparison pages, which repeat spec text across all three, made it harder rather than easier.
Identical to the 8K in everything that costs money: base stations and controllers are separate purchases, the PC needs DisplayPort 1.4, and there is no management layer of any kind. The one thing to settle before buying second-hand is which panel you are getting, because the shells are the same and the model name is the only external clue. Pimax published no end-of-life notice for this SKU either.
Not a purchase and not a training device - SteamVR on a PC, so our Android courses never ran on it. Its interest is narrow and real: it is the reference point for what OLED bought you in a wide-field headset, and what it cost in resolution against the LCD sibling at the same price. Anyone reading this page to choose hardware today should be looking at current standalone headsets instead.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 110°, from 39 models that publish the figure.
Median for this class: $899, from 45 models that publish the figure.
Controllers and hand tracking
Controller
6DoF
Sold separatelyHow it is tracked
Base stations (Lighthouse)
Base stations sweep the room with lasers. Coverage comes from where the boxes are mounted rather than from what the headset can see — occlusion stops being a problem, and the boxes are a second purchase.
Other controllers
Any SteamVR (Lighthouse) controller
Index Controller · HTC Vive controller
Bare hands
No hand tracking — a controller is the only way in.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Pimax
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- Announced: not published by the manufacturer
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- Released: not published by the manufacturer
- AvailabilityWhether you can still order it new today.
- Discontinued
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- 2025-06-30
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- OLED
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Fresnel lenses
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 2560x1440
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- Refresh rate: not published by the manufacturer
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 200° diagonal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: not published by the manufacturer
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: not published by the manufacturer
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- Weight: not published by the manufacturer
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- Visible field of view: not published by the manufacturer
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: not published by the manufacturer
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: not published by the manufacturer
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: not published by the manufacturer
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: not published by the manufacturer
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- Subpixel layout: not published by the manufacturer
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: not published by the manufacturer
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- None
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: not published by the manufacturer
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- IPD range: not published by the manufacturer
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: not published by the manufacturer
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: not published by the manufacturer
- DimensionsWidth, height and depth of the device itself.
- Dimensions: not published by the manufacturer
- Weight with strapWith the strap it ships with — the weight you actually wear.
- Weight with strap: not published by the manufacturer
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Headband
- MaterialsShell and facial interface, in the vendor’s words.
- Materials: not published by the manufacturer
- ColoursColours the manufacturer sells it in.
- Colours: not published by the manufacturer
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: not published by the manufacturer
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- outside-in 6DoF (SteamVR base stations 1.0 or 2.0, sold separately)
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Required
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: not published by the manufacturer
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: not published by the manufacturer
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: not published by the manufacturer
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- No
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- None
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- No
- Controller modelThe manufacturer's own name for the controller.
- Controller model: not published by the manufacturer
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Controller tracking methodWhat establishes where the controller is. It decides whether the controller keeps working behind your back or down at your hip — “6DoF” on its own does not say.
- Base stations (Lighthouse)
- Other controllersWhether the headset works with controllers other than the ones it ships with.
- Any SteamVR (Lighthouse) controller — Index Controller · HTC Vive controller
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Finger tracking on the controller: not published by the manufacturer
- Controller inputsButtons, sticks and triggers the controller offers.
- Controller inputs: not published by the manufacturer
- Controller hapticsVibration feedback in the hand.
- Controller haptics: not published by the manufacturer
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Controller power: not published by the manufacturer
- Controller weightOne controller, as the vendor weighs it.
- Controller weight: not published by the manufacturer
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: not published by the manufacturer
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- No
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: not published by the manufacturer
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: not published by the manufacturer
- PortsPhysical sockets and charging contacts.
- DisplayPort 1.4 · USB Type-A 3.0
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: not published by the manufacturer
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: not published by the manufacturer
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: not published by the manufacturer
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Headphone jack
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: not published by the manufacturer
- Price bandThe band it sits in, rather than a price that goes stale.
- Premium
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $899
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: not published by the manufacturer
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: not published by the manufacturer
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): not published by the manufacturer
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): not published by the manufacturer
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): not published by the manufacturer
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): not published by the manufacturer
Who this device is for
Simulation users who care more about black level than pixel count, and owners identifying which Pimax they actually have. Not a fleet device, never sold as one, and not something to specify new.
What is missing, and what the manufacturer does not publish
No refresh rate is recorded, and that is deliberate: Pimax publishes a tolerance band rather than a figure, and contradicts itself across its own two domains - 85 plus or minus 2 hertz on one, 85 plus or minus 3 on the other. A tolerance is not a value this field can hold. Weight, dimensions, release date and IPD range are all unpublished. Be aware too that the audio, connection, sensor, fit and content rows in Pimax's comparison tables are word-for-word identical between this model, the 5K Plus and the 8K, so anything taken from those rows describes the series rather than this headset.
Pimax 5K XR — frequently asked questions
- What is the difference between the Pimax 5K XR and the 5K Plus?
- The panel, and effectively nothing else. Both are 2560 by 1440 per eye with the same 200-degree shell, the same Lighthouse tracking and the same 899 dollars; the XR uses OLED where the Plus uses Pimax's customised low-persistence LCD. OLED gives you true black, which matters in night scenes and dark interiors; the LCD gives you better fill and, by most accounts, a cleaner image in bright content. Pimax sold them side by side at one price and let buyers choose.
- Is the Pimax 5K XR worth buying second-hand today?
- Only as a curiosity. It needs SteamVR base stations and controllers you supply yourself, a PC with DisplayPort 1.4, and it runs on a platform Pimax has moved on from twice since. There is no end-of-life notice because Pimax never published one - the product simply left the store. If OLED black level in a wide-field headset is what you are after, the question to ask a seller first is which panel the unit has, because the 5K XR and the 5K Plus are outwardly identical.
