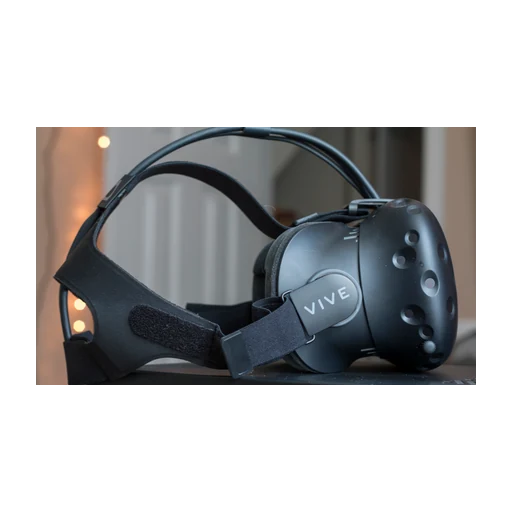

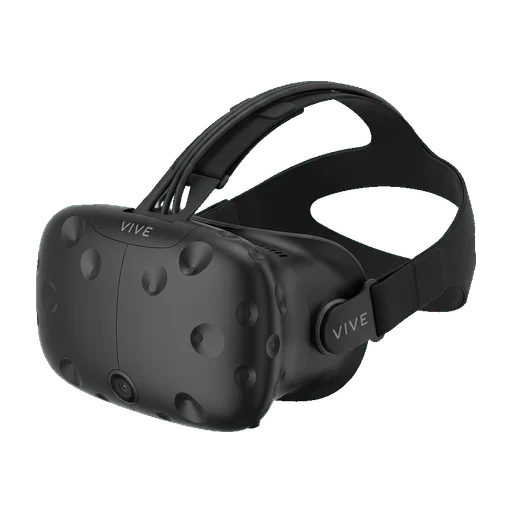

HTC VIVE (2016) — specification and verdict
The original VIVE puts 1080x1200 per eye on two OLED panels at 90 Hz, across roughly 108 degrees of horizontal field of view. That was generous in 2016 and it is thin now: the PenTile layout carries only two subpixels per pixel, so procedure text, gauge faces and small labels on a machine model break up unless you walk the trainee right up to them. Position comes from two Vive Base Stations that have to be screwed to opposite corners of the room and powered, with tracking reported at 1000 Hz, which is why the room-scale movement still feels solid. IPD is a manual dial between 61 and 72 mm, and the headset with its fabric strap is 555 g hanging off a cable to a Windows PC. The bundled controllers are 6DoF, rechargeable, about 6 hours per charge, 203 g each, with a trackpad, trigger and grip buttons.
There is no fleet management story here at all: this is a PC peripheral, so whatever you deploy you deploy to the PCs, and every headset needs its own machine, its own two base stations and its own mounted corners. HTC took the original VIVE out of the channel around the Cosmos launch in 2019, so anything you buy in Poland or Germany today is second-hand, out of warranty, and dependent on SteamVR 1.0 base stations that are themselves long out of production. Hygiene is the stock foam facial interface, which is glued-in gasket rather than a wipe-clean swap tray. Budget for the PC, the cable run, the wall mounts and a spare face gasket before you count the headset, which launched at 799 USD with the base stations and controllers in the box.
Do not buy this for training in 2026. It is a discontinued 2016 PC headset that our standalone Android courses cannot run on at all, and its base-station rig makes it the most labour-intensive thing on this list to install. If a room already has a working VIVE rig and a SteamVR title someone paid for, keep using it until it dies; for anything new, take a standalone headset instead.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: $799, from 32 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- HTC VIVE
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2015-03-01
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2016
- AvailabilityWhether you can still order it new today.
- Discontinued in 2019
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: Specifications checked against the manufacturer's page on 2026-08-08.
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- OLED
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Optics: Specifications checked against the manufacturer's page on 2026-08-08.
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- ≈1080x1200*VRcompare
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- ≈90 Hz*VRcompare
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- ≈108° horizontal*VRcompare
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: Specifications checked against the manufacturer's page on 2026-08-08.
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- Weight: Specifications checked against the manufacturer's page on 2026-08-08.
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- 108° horizontal · 97° vertical
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- 108.77° horizontal · 111.53° vertical · 113.18° diagonal
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- ≈93.45°*VRcompare
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- PenTile · 2 subpixels per pixel
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: Specifications checked against the manufacturer's page on 2026-08-08.
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- ≈Colour*VRcompare
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- 61–72 mm
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: Specifications checked against the manufacturer's page on 2026-08-08.
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: Specifications checked against the manufacturer's page on 2026-08-08.
- DimensionsWidth, height and depth of the device itself.
- ≈190 × 117 × 140 mm*VRcompare
- Weight with strapWith the strap it ships with — the weight you actually wear.
- ≈555 g*VRcompare (2016 model figure)
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Soft strap
- MaterialsShell and facial interface, in the vendor’s words.
- plastic · foam facial interface
- ColoursColours the manufacturer sells it in.
- Black
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: Specifications checked against the manufacturer's page on 2026-08-08.
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- SteamVR 1.0 base stations (2x Vive Base Station), marker-based outside-in
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Required
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking rateHow often position is recalculated. Higher is steadier.
- ≈1000 Hz*VRcompare
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: Specifications checked against the manufacturer's page on 2026-08-08.
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- Face tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- Body tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- Yes

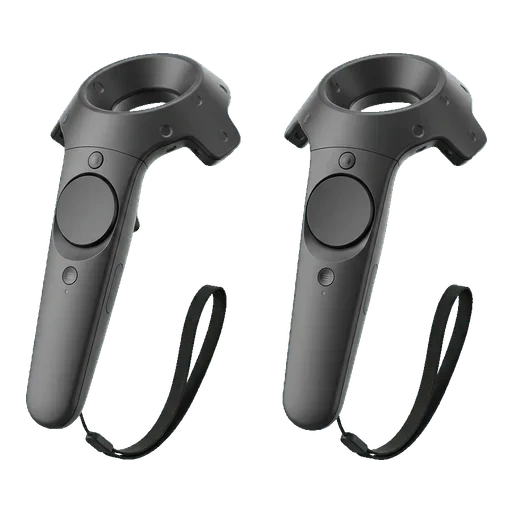

- Controller modelThe manufacturer's own name for the controller.
- HTC Vive controller
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Capacitive (partial)
- Controller inputsButtons, sticks and triggers the controller offers.
- trackpad · face buttons · index trigger · grip buttons
- Controller hapticsVibration feedback in the hand.
- Yes
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Built-in rechargeable
- Controller weightOne controller, as the vendor weighs it.
- 203 g
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: Specifications checked against the manufacturer's page on 2026-08-08.
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: Specifications checked against the manufacturer's page on 2026-08-08.
- CPUCores and clocks, where the manufacturer publishes them.
- CPU: Specifications checked against the manufacturer's page on 2026-08-08.
- GPUThe graphics part of the chip.
- GPU: Specifications checked against the manufacturer's page on 2026-08-08.
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- Memory: Specifications checked against the manufacturer's page on 2026-08-08.
- SD card slotWhether storage can be added with a card.
- SD card slot: Specifications checked against the manufacturer's page on 2026-08-08.
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- Battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- Battery capacity (mAh): Specifications checked against the manufacturer's page on 2026-08-08.
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: Specifications checked against the manufacturer's page on 2026-08-08.
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: Specifications checked against the manufacturer's page on 2026-08-08.
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: Specifications checked against the manufacturer's page on 2026-08-08.
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- No
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: Specifications checked against the manufacturer's page on 2026-08-08.
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: Specifications checked against the manufacturer's page on 2026-08-08.
- PortsPhysical sockets and charging contacts.
- USB Type-A
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: Specifications checked against the manufacturer's page on 2026-08-08.
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: Specifications checked against the manufacturer's page on 2026-08-08.
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: Specifications checked against the manufacturer's page on 2026-08-08.
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Headphone jack
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: Specifications checked against the manufacturer's page on 2026-08-08.
- Price bandThe band it sits in, rather than a price that goes stale.
- Premium
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $799
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: Specifications checked against the manufacturer's page on 2026-08-08.
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: Specifications checked against the manufacturer's page on 2026-08-08.
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
Who this device is for
This entry is for people who already own the hardware: a university lab, a maker space or a simulator room that was fitted out between 2016 and 2019 and still has both base stations on the wall. It is also for buyers checking whether a cheap second-hand VIVE on a marketplace is a shortcut into VR training. It is not for anyone specifying new equipment.
What is missing, and what the manufacturer does not publish
HTC's own product page for the original VIVE now returns 403 and the model has been dropped from the site, so nothing here could be upgraded to a manufacturer source; the record leans on VRcompare throughout. HTC has never published an end-of-support date, a driver-support horizon or a spare-parts window for this generation, and the weight is the messiest figure of all: 555 g applies to the 2016 unit and 470 g to the 2017 revision, with no way to tell them apart from a listing photo. Battery capacity, panel brightness and pixels per degree were never published either.
HTC VIVE (2016) — frequently asked questions
- Can you still buy a new HTC VIVE (2016) anywhere in 2026?
- No. HTC pulled it from the channel around the launch of the Vive Cosmos in 2019, and it has since disappeared from HTC's own site — the product page returns an error. Everything on the market now is used, sold without warranty, and priced far below the 799 USD it launched at.
- Does the original HTC VIVE still need two SteamVR base stations mounted on the wall?
- Yes, and that is not optional. Its marker-based tracking only works inside the volume covered by two Vive Base Stations placed in opposite corners and mains-powered, so every room you want to train in needs its own pair, its own mounts and its own cabling. Newer headsets track themselves with onboard cameras and need nothing on the walls.
- Is the 1080x1200 OLED sharp enough to read procedure text in a safety course?
- Not reliably. At 1080x1200 per eye spread over about 108 degrees, with a PenTile layout carrying only two subpixels per pixel, small labels, instrument scales and body text smear unless the trainee is standing right in front of them. Course content built for this headset has to use oversized type, which changes how the scene is designed.
Compare this device
Consider these too
The nearest devices in the same class, ranked by availability and launch price — not by our opinion of them.
Specifications checked against the manufacturer's page on 2026-08-08. Manufacturer's specification
