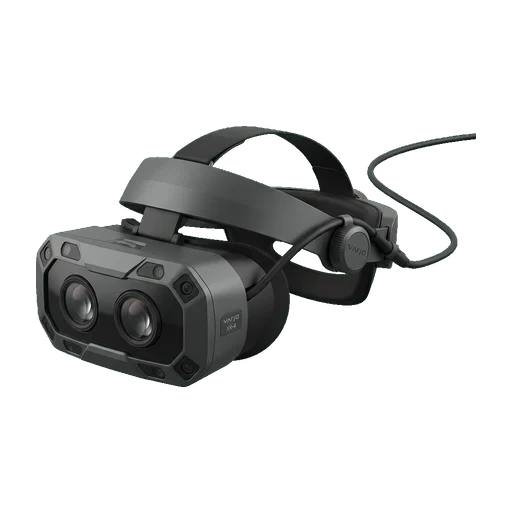

Varjo XR-4 Series — specification and verdict
The Varjo XR-4 Series is what mixed reality looks like with no budget ceiling: 3840 x 3744 pixels per eye on mini-LED panels with local dimming, a 120 by 105 degree field of view, up to 51 pixels per degree, 200-hertz eye tracking and automatic interpupillary adjustment between 56 and 72 mm. Pass-through comes from dual 20-megapixel cameras with a LiDAR depth sensor, which is why physical cockpit panels and real hands sit convincingly inside the virtual scene. It is a PC-VR headset — a DisplayPort cable to a Windows workstation with a high-end NVIDIA card, 665 g on the face plus the headstrap. Varjo publishes resolution, field of view and IPD publicly but keeps the refresh rate in a gated product book, so the 90 Hz here is marked as coming from the launch specification table.
The series is three variants on one platform, which is why it is one entry here rather than three: the tables would be identical. The standard XR-4 has fixed-focus pass-through at about 33 pixels per degree. The Focal Edition adds gaze-driven autofocus cameras that push pass-through to 51 pixels per degree — the version that matters when the trainee has to read a real instrument through the headset. The Secure Edition is TAA compliant, assembled in Finland and can be configured with no radio components at all, for air-gapped and classified sites. Varjo sells by quotation rather than from a webstore, which closed in October 2025, and has an in-house professional services team for deployment.
This is the right headset for flight decks, vehicle crews and any simulation where the real physical panel in front of the trainee has to stay readable — the sort of work where a single day of the trainee's time costs more than the headset. It is the wrong headset for corporate EHS training: our courses do not run on it, it needs a workstation per seat, and cleaning and passing it between twenty people a day is not what it was built for. If somebody in your organisation is choosing between Varjo and a standalone fleet, they are answering two different questions.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 114°, from 33 models that publish the figure.
Median for this class: 200 nits, from 3 models that publish the figure.
Median for this class: $899, from 39 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Varjo
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2023-11-27
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2023
- AvailabilityWhether you can still order it new today.
- On sale
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: not published by the manufacturer
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- LCD
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Optics: not published by the manufacturer
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 3840x3744
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- ≈90 Hz*Road to VR, XR-4 launch specification table
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 120° horizontal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: not published by the manufacturer
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- 200 nits
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- ≈665 g*Road to VR, XR-4 launch specification table
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- Visible field of view: not published by the manufacturer
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: not published by the manufacturer
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: not published by the manufacturer
- Average pixel densityPixels per degree across the image. More is sharper.
- 32 PPD horizontal (computed)
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- 51 PPD
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- RGB stripe · 3 subpixels per pixel
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Eye-tracked
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Colour
- Passthrough camerasResolution, density and frame rate of that camera feed.
- 33 PPD
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Motorised
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- 56–72 mm
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Yes
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Fits over glasses
- DimensionsWidth, height and depth of the device itself.
- Dimensions: not published by the manufacturer
- Weight with strapWith the strap it ships with — the weight you actually wear.
- 1021 g
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Rigid strap with a dial
- MaterialsShell and facial interface, in the vendor’s words.
- Plastic · foam facial interface
- ColoursColours the manufacturer sells it in.
- White
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- No
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- inside-out 6DoF (SteamVR base stations optional)
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Optional
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: not published by the manufacturer
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: not published by the manufacturer
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Yes
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- Yes
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- Yes
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- No
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- None
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- Yes

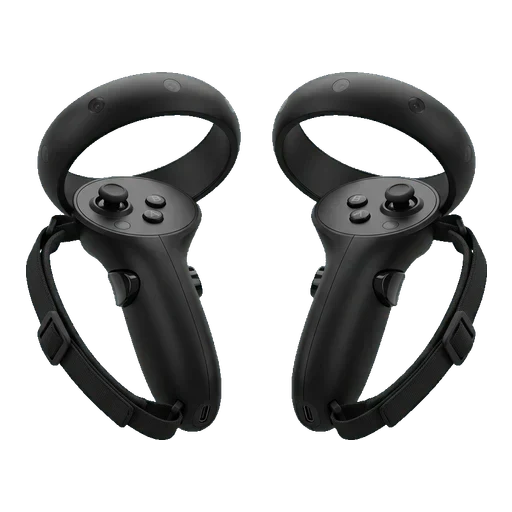

- Controller modelThe manufacturer's own name for the controller.
- Varjo Controller
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Finger tracking on the controller: not published by the manufacturer
- Controller inputsButtons, sticks and triggers the controller offers.
- Joystick · face buttons · index trigger · middle finger trigger
- Controller hapticsVibration feedback in the hand.
- Yes
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Controller power: not published by the manufacturer
- Controller weightOne controller, as the vendor weighs it.
- Controller weight: not published by the manufacturer
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: not published by the manufacturer
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- Yes
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- No
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: not published by the manufacturer
- PortsPhysical sockets and charging contacts.
- Ports: not published by the manufacturer
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: not published by the manufacturer
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: not published by the manufacturer
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Over a cable
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Built-in speakers
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: not published by the manufacturer
- Price bandThe band it sits in, rather than a price that goes stale.
- Enterprise
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $3990
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: not published by the manufacturer
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: not published by the manufacturer
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): not published by the manufacturer
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): not published by the manufacturer
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): not published by the manufacturer
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): not published by the manufacturer
Average pixel density is our own arithmetic: panel pixels divided by the field of view on the same axis. It is the standard approximation, and it runs lower than a published peak figure because a lens packs pixels denser at the centre.
Who this device is for
Varjo XR-4 is a professional simulation instrument: 3840x3744 per eye with human-eye-class detail, eye tracking, hand tracking and a 120-degree field of view, driven by a serious PC. It is bought for flight and defence simulation, design review and research — not for corporate training, and our courses do not run on it. The three editions ship as one record here because they differ in licensing and features, not in the specification a table can show.
How it differs from its predecessor
Against every standalone headset in this catalogue the comparison is not close on image quality and not close in the other direction on deployment: it needs a workstation, a licence and a technician. Against Pimax and Bigscreen, the other high-resolution PC VR options, what Varjo adds is the enterprise contract and a support organisation aimed at institutions.
What is missing, and what the manufacturer does not publish
Varjo does not publish the refresh rate outside a product book behind a form, so that figure in our table is marked as coming from elsewhere. Varjo also names the lenses only as variable resolution aspheric, which is none of the lens stacks this table can record. There is no standalone mode, no kiosk mode, no device management and no route for our applications. Varjo names a starting price for the series, but the Focal and Secure editions are quoted individually, so the real cost of a given configuration still comes from a sales conversation.
Varjo XR-4 Series in independent reviews
Reviews we consider worth your time, each with a note on what the reviewer actually tested and why it matters for a training rollout. We do not own this hardware, so the tests are theirs — the reading of them is ours.
- MRTV - MIXED REALITY TV2023
The coverage that explains where the XR-4 sits: a Vision Pro-class display for people who already have a PC and a simulator, rather than a self-contained device. Sets the expectation the specification alone does not.
Watch on YouTube - MRTV - MIXED REALITY TV2024
An unboxing and first impressions of the Focal Edition six months after launch, and openly unfinished-feeling. Worth watching precisely because it is not a launch-day verdict on a device this expensive.
Watch on YouTube - VoodooDE VR - english version -2025
A high-end buying guide rather than a single review, and it earns its place here by putting the XR-4 next to everything else at this level. That comparison is what a buyer at this price actually needs.
Watch on YouTube
Nothing is sent to YouTube until you press play. Once you do, Google receives your IP address and device data and may process them outside the EEA — see our privacy policy for the details.
Varjo XR-4 Series — frequently asked questions
- Why is the Varjo XR-4 listed as one record instead of three editions?
- Because the Focal, Secure and standard editions differ in licensing, autofocus pass-through and radio hardware — none of which is a field in our table. Three rows would show three identical specifications, which would be less honest than one row with a note about what the editions change.
- What is the Varjo XR-4 actually used for?
- Simulation and design work where visual fidelity is the requirement: flight and defence training, engineering review, research. It is a PC VR instrument with a workstation behind it, and the price and licensing model assume an institution rather than a department buying a few headsets.
