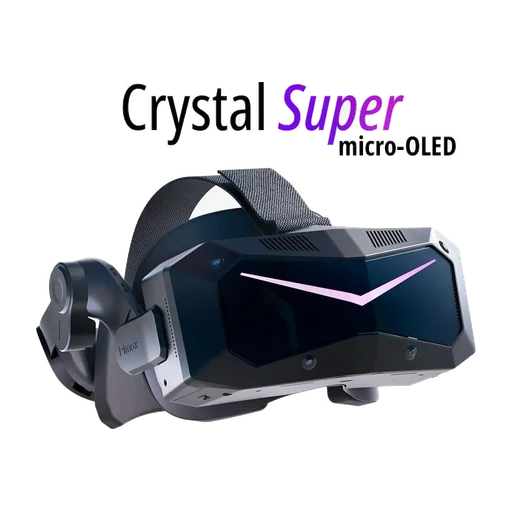

Pimax Crystal Super 8K Micro-OLED — specification and verdict
The Crystal Super 8K Micro-OLED swaps the QLED optical engine of the other Crystal Super models for a Sony micro-OLED one, giving 3840x3552 per eye across a 116-degree horizontal field of view at 90 Hz. Pimax publishes 53 pixels per degree, which is enough for a trainee to read a machine label, a gauge face or a printed procedure inside the scene without leaning in. Eye tracking at the headset level drives dynamic foveated rendering, which is what makes that resolution survivable on a normal gaming PC. It is a PC VR headset with a DisplayPort cable: there is no onboard Android, so none of our standalone courses run on it.
Every station needs its own gaming PC, a DisplayPort run and a USB Type-C connection, so the cost per seat is the $2,199 headset plus a machine capable of driving it. Pimax sells direct from its own store to the EU including Poland and Germany, but the purchase is split: $1,299 up front and a $900 Prime Fee charged after a 14-day trial through Pimax Play, which is awkward for a purchasing department that expects one invoice. There is no vendor MDM and no kiosk mode, so a fleet is managed as PCs, not as headsets. Hygiene is a foam facial interface on a rigid retractable strap; the IPD is motorised across 58 to 72 mm, which at least makes swapping between trainees quick.
Do not buy this for standalone VR training. It is a PC VR device, our Android courses do not run on it, and the price and the DisplayPort tether make it a poor fit for a rotating group of trainees. It earns its place where visual acuity is the whole point and a workstation is already there: simulator seats, flight and driving rigs, design review.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Pixel density53 PPD
51 PPD70 PPD
Median for this class: 62 PPD, from 4 models that publish the figure.
Field of view116°
45°180°
Median for this class: 115°, from 26 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Pimax
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2024-12-01
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2025
- AvailabilityWhether you can still order it new today.
- On sale
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: Specifications checked against the manufacturer's page on 2026-08-08.
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- micro-OLED
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Pancake lenses
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 3840x3552
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 90 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 116° horizontal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- 53 PPD
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: Specifications checked against the manufacturer's page on 2026-08-08.
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- Weight: Specifications checked against the manufacturer's page on 2026-08-08.
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- Visible field of view: Specifications checked against the manufacturer's page on 2026-08-08.
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: Specifications checked against the manufacturer's page on 2026-08-08.
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: Specifications checked against the manufacturer's page on 2026-08-08.
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- Subpixel layout: Specifications checked against the manufacturer's page on 2026-08-08.
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Eye-tracked
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Passthrough: Specifications checked against the manufacturer's page on 2026-08-08.
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Motorised
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- 58–72 mm
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: Specifications checked against the manufacturer's page on 2026-08-08.
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: Specifications checked against the manufacturer's page on 2026-08-08.
- DimensionsWidth, height and depth of the device itself.
- Dimensions: Specifications checked against the manufacturer's page on 2026-08-08.
- Weight with strapWith the strap it ships with — the weight you actually wear.
- Weight with strap: Specifications checked against the manufacturer's page on 2026-08-08.
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Rigid strap with a dial
- MaterialsShell and facial interface, in the vendor’s words.
- plastic · foam facial interface
- ColoursColours the manufacturer sells it in.
- Black
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: Specifications checked against the manufacturer's page on 2026-08-08.
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- inside-out 6DoF SLAM, SteamVR base stations optional
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Optional
- Tracking camerasHow many cameras it uses to know where it is.
- 4
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: Specifications checked against the manufacturer's page on 2026-08-08.
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: Specifications checked against the manufacturer's page on 2026-08-08.
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- Yes
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- Face tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- Body tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- Yes
- Controller modelThe manufacturer's own name for the controller.
- Pimax Reality Controller
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Capacitive (partial)
- Controller inputsButtons, sticks and triggers the controller offers.
- face buttons · joysticks · triggers
- Controller hapticsVibration feedback in the hand.
- Yes
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Built-in rechargeable
- Controller weightOne controller, as the vendor weighs it.
- 126 g
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: Specifications checked against the manufacturer's page on 2026-08-08.
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: Specifications checked against the manufacturer's page on 2026-08-08.
- CPUCores and clocks, where the manufacturer publishes them.
- CPU: Specifications checked against the manufacturer's page on 2026-08-08.
- GPUThe graphics part of the chip.
- GPU: Specifications checked against the manufacturer's page on 2026-08-08.
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- Memory: Specifications checked against the manufacturer's page on 2026-08-08.
- SD card slotWhether storage can be added with a card.
- SD card slot: Specifications checked against the manufacturer's page on 2026-08-08.
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- Battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- Battery capacity (mAh): Specifications checked against the manufacturer's page on 2026-08-08.
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: Specifications checked against the manufacturer's page on 2026-08-08.
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: Specifications checked against the manufacturer's page on 2026-08-08.
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: Specifications checked against the manufacturer's page on 2026-08-08.
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- No
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: Specifications checked against the manufacturer's page on 2026-08-08.
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: Specifications checked against the manufacturer's page on 2026-08-08.
- PortsPhysical sockets and charging contacts.
- USB Type-C · headphone jack
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: Specifications checked against the manufacturer's page on 2026-08-08.
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: Specifications checked against the manufacturer's page on 2026-08-08.
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Over a cable (DisplayPort)
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Built-in speakers · Headphone jack
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: Specifications checked against the manufacturer's page on 2026-08-08.
- Price bandThe band it sits in, rather than a price that goes stale.
- Premium
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- Launch price: Specifications checked against the manufacturer's page on 2026-08-08.
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: Specifications checked against the manufacturer's page on 2026-08-08.
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- $2199
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
Who this device is for
For simulator and engineering teams that already have RTX-class workstations and need the sharpest micro-OLED image they can get on a tether. Not for a training department that wants headsets it can hand out, charge overnight and manage centrally.
What is missing, and what the manufacturer does not publish
Pimax does not publish a headset weight, dimensions, brightness in nits, or any detail on the passthrough beyond the fact that it uses the four tracking cameras, so we cannot say whether it is colour or greyscale. VRcompare still lists the price as $2,135 with a $936 fee and a 105-degree visible field of view; Pimax's own page says $2,199 with a $900 Prime Fee and 116 degrees horizontal, and the manufacturer wins. Hand tracking appears in Pimax's feature bullets, but the 120 Hz Ultraleap unit is a separately purchased accessory, so we record the headset as having none out of the box.
Pimax Crystal Super 8K Micro-OLED — frequently asked questions
- Does the Pimax Crystal Super 8K Micro-OLED need SteamVR base stations?
- No. Pimax ships it with SLAM tracking off its four onboard cameras, which tracks the headset and the Reality Controllers with no base stations at all. Lighthouse is optional: Pimax sells a separate Crystal Super Lighthouse faceplate for people who already run a SteamVR 2.0 setup or need base-station accuracy for a simulator rig.
- Why is the Pimax Crystal Super 8K Micro-OLED billed as $1,299 plus a $900 Prime Fee?
- Pimax splits the $2,199 total into an upfront payment and a Prime Fee that only becomes payable after you have received the headset and run a 14-day trial through Pimax Play. It is a trial-then-pay structure rather than a discount, and the full $2,199 is what the device costs. For a company buying on a purchase order it means two charges against one order, which is worth flagging to finance before you commit.
- Can the micro-OLED optical engine be swapped for the QLED one on a Crystal Super?
- Yes, that is the point of the Crystal Super design. Pimax sells the optical engines separately from the headset body, so the same Crystal Super can run the Sony micro-OLED engine at 3840x3552 and 116 degrees, or a QLED engine at 3840x3840 with a different field of view. It also means an optics failure can be repaired by replacing the engine rather than the whole headset.
Compare this device
Consider these too
The nearest devices in the same class, ranked by availability and launch price — not by our opinion of them.
Specifications checked against the manufacturer's page on 2026-08-08. Manufacturer's specification
Product and company names used here are the trademarks of their respective owners and appear only to identify the hardware being compared. We are not affiliated with, sponsored by or endorsed by any of these manufacturers. Illustrations are our own.
