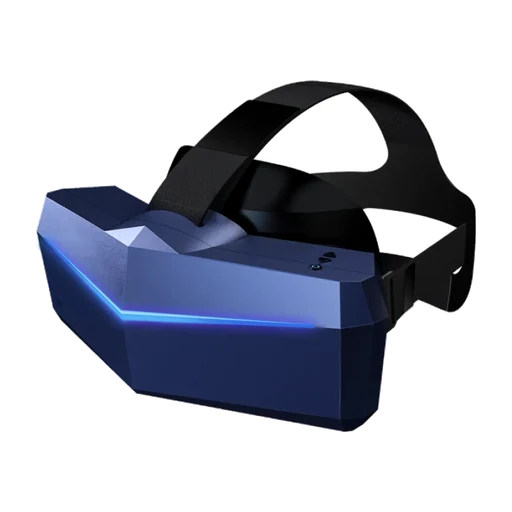

Pimax 5K Plus — specification and verdict
The 5K Plus puts a 2560x1440 LCD in front of each eye behind Fresnel optics and spreads it across roughly 150° of visible horizontal field of view, with 86.79° of binocular overlap. That trade is the whole point of the headset and the whole problem for training: the periphery is immersive, but pixels per degree at the centre are low for a 2018 1440p panel stretched that wide, so small labels, gauge markings and procedure text are hard to read. Hardware IPD adjusts from 60 to 72 mm, which covers most adults but not narrow-set eyes. It refreshes at up to 144 Hz over DisplayPort 1.4 plus USB 3.0, so every session needs a gaming PC on a cable. There is no eye tracking and no controller-free hand tracking.
This is a tethered SteamVR headset, so a deployment is never just the headset: two Lighthouse base stations have to be mounted and powered in every room, and Valve Index controllers are a separate purchase. Pimax priced it at 699 USD headset-only, 999 USD with controllers and 1249 USD with controllers and two base stations, which is the figure to budget against — before the PC. There is no vendor MDM, no kiosk mode and no enterprise licensing programme, so a fleet is managed as a fleet of Windows PCs, not as headsets. The facial interface is foam, not a wipe-clean gasket, which makes shared use between trainees awkward. Pimax ended after-sales support for the 5K series on 30 June 2025, so spare cables and repairs now come from the second-hand market.
Do not buy one for training. Our courses are standalone Android VR applications and do not run on a PC-tethered SteamVR headset at all, and a device whose maker stopped supporting it in June 2025 has no place in a fleet you have to keep running for years. If the wide field of view is genuinely what you need, look at Pimax's current Crystal line; if you want our courses to run, buy a standalone headset instead.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 115°, from 26 models that publish the figure.
Median for this class: 285 g, from 17 models that publish the figure.
Median for this class: $799, from 32 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Pimax
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2018-09-07
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2018
- AvailabilityWhether you can still order it new today.
- Discontinued
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- 2025-06-30
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- LCD
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Fresnel lenses
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 2560x1440
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 144 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 150° horizontal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: Specifications checked against the manufacturer's page on 2026-08-08.
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- 500 g
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- 150° horizontal
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- 160.29° horizontal · 102.7° vertical · 158.04° diagonal
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- 86.79°
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- RGB stripe · 3 subpixels per pixel
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: Specifications checked against the manufacturer's page on 2026-08-08.
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Passthrough: Specifications checked against the manufacturer's page on 2026-08-08.
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- 60–72 mm
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: Specifications checked against the manufacturer's page on 2026-08-08.
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: Specifications checked against the manufacturer's page on 2026-08-08.
- DimensionsWidth, height and depth of the device itself.
- 280 × 108 × 136 mm
- Weight with strapWith the strap it ships with — the weight you actually wear.
- 514 g
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Soft strap
- MaterialsShell and facial interface, in the vendor’s words.
- plastic · foam facial interface
- ColoursColours the manufacturer sells it in.
- Black · Blue
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: Specifications checked against the manufacturer's page on 2026-08-08.
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- SteamVR (Lighthouse) base stations, 2 required
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Required
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking rateHow often position is recalculated. Higher is steadier.
- 1000 Hz
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: Specifications checked against the manufacturer's page on 2026-08-08.
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- Face tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- Body tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- No
- Controller modelThe manufacturer's own name for the controller.
- Valve Index Controller
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Full
- Controller inputsButtons, sticks and triggers the controller offers.
- capacitive thumbstick · trackpad · capacitive face buttons · capacitive index trigger · pressure-sensitive grip
- Controller hapticsVibration feedback in the hand.
- Yes
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Built-in rechargeable
- Controller weightOne controller, as the vendor weighs it.
- 196 g
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: Specifications checked against the manufacturer's page on 2026-08-08.
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: Specifications checked against the manufacturer's page on 2026-08-08.
- CPUCores and clocks, where the manufacturer publishes them.
- CPU: Specifications checked against the manufacturer's page on 2026-08-08.
- GPUThe graphics part of the chip.
- GPU: Specifications checked against the manufacturer's page on 2026-08-08.
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- Memory: Specifications checked against the manufacturer's page on 2026-08-08.
- SD card slotWhether storage can be added with a card.
- SD card slot: Specifications checked against the manufacturer's page on 2026-08-08.
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- Battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- Battery capacity (mAh): Specifications checked against the manufacturer's page on 2026-08-08.
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: Specifications checked against the manufacturer's page on 2026-08-08.
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: Specifications checked against the manufacturer's page on 2026-08-08.
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: Specifications checked against the manufacturer's page on 2026-08-08.
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- No
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: Specifications checked against the manufacturer's page on 2026-08-08.
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: Specifications checked against the manufacturer's page on 2026-08-08.
- PortsPhysical sockets and charging contacts.
- DisplayPort 1.4 · USB 3.0
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: Specifications checked against the manufacturer's page on 2026-08-08.
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: Specifications checked against the manufacturer's page on 2026-08-08.
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: Specifications checked against the manufacturer's page on 2026-08-08.
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Headphone jack
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: Specifications checked against the manufacturer's page on 2026-08-08.
- Price bandThe band it sits in, rather than a price that goes stale.
- Premium
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $699
- Price by configurationWhat each configuration cost at launch.
- Headset only $699 · With Valve Index controllers $999 · With controllers and two base stations $1249
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: Specifications checked against the manufacturer's page on 2026-08-08.
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
Who this device is for
The audience was PC VR enthusiasts in 2018 — simulator pilots and drivers who wanted peripheral vision more than sharpness and already owned base stations and a strong GPU. For a training organisation it is the wrong shape: cabled, room-installed, 500 g on a soft fabric strap, and dependent on a Windows PC per trainee.
What is missing, and what the manufacturer does not publish
Pimax's own product page for the 5K Plus is gone — it now returns 404 — so nothing here could be upgraded to a live manufacturer source, and the record leans on VRcompare. Pimax advertised 170° horizontal, 115° vertical and 200° diagonal field of view, while the measured visible figure is around 150° horizontal; we carry the measured one. We could not source a battery-free weight breakdown for the head strap variants, the full list of supported refresh rates below 144 Hz, or any statement about hygiene accessories.
Pimax 5K Plus — frequently asked questions
- Does Pimax still repair or supply parts for the 5K Plus?
- No. Pimax ended after-sales support for the whole 5K series on 30 June 2025, after its supplier stopped producing the 5K connection cables. The headset keeps working if yours is intact, but a failed cable or a broken strap now has to be solved on the second-hand market, and Pimax's own route forward is the trade-in programme towards the Crystal Light.
- Do I need Valve base stations and Index controllers to use a Pimax 5K Plus?
- Yes for anything interactive. The headset tracks from two external Lighthouse base stations, which have to be mounted in the room, and it ships without controllers at the 699 USD headset-only price. Pimax's bundles were 999 USD with Valve Index controllers and 1249 USD with controllers and two base stations, so the room hardware roughly doubles the cost before the PC.
- Can I run Skillsive VR training courses on a Pimax 5K Plus?
- No. Our courses are standalone Android VR applications and the 5K Plus is a PC-tethered SteamVR display with no operating system of its own, so there is nothing on the headset to install them onto. It also has no vendor MDM or kiosk mode, so even as a PC peripheral it cannot be managed the way a training fleet needs. Use a standalone headset instead.
