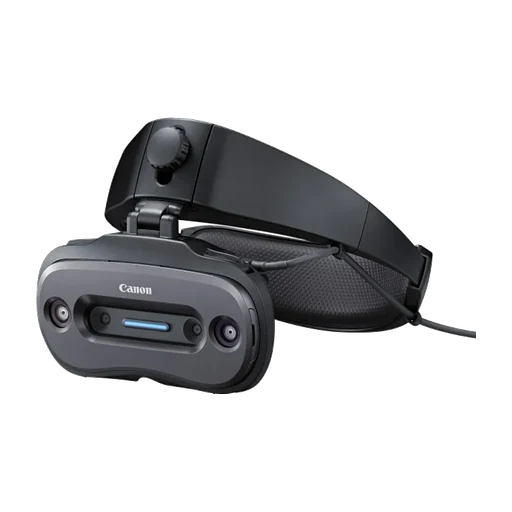

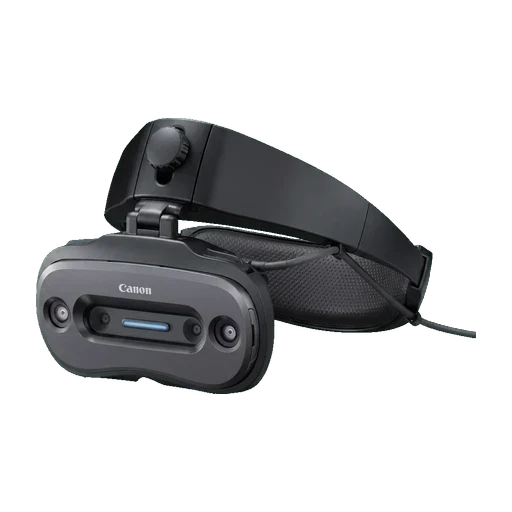

Canon MREAL X1 — specification and verdict
The MREAL X1 is a video see-through mixed reality display: two 1920x2160 panels running at 120 Hz, fed by colour passthrough cameras at 60 fps. Its field of view is small for VR at about 58 degrees horizontal by 60 degrees vertical, and that is deliberate; Canon built it to register CAD geometry onto real objects at arm's length, not to fill a trainee's vision. The display module weighs 158 g and 359 g with the halo strap, and the strap detaches so the display can be held up to the face by hand. There is no computer inside: the image comes over a 10 m proprietary cable from a Windows workstation, and interpupillary distance is set by hand between 57 and 76 mm.
Each X1 needs a workstation Canon specifies as a 13th-generation Core i9 with 32 GB of RAM and an RTX 3070 or RTX A5000 class GPU, plus the MREAL Platform licence and the interface unit; the BX-40 Interface Box Kit is the option that lets a Thunderbolt 3 mobile workstation drive it instead of a desktop card. Sales and support run through Canon ITS and Japanese distributors, the documentation is Japanese only, and we found no Canon channel or price for Poland or Germany. There is no vendor MDM or kiosk mode, because the headset is a display rather than a computer, so fleet management means managing the PCs behind it. Canon publishes no swappable facial interface, so hygiene between users is limited to wiping the halo strap padding.
Do not buy this for VR safety training. Our courses are standalone Android applications and the X1 has no onboard computer, no controllers and no app store; it exists to put CAD models onto physical prototypes for design review. If your engineering team already runs MREAL, leave it there and buy a separate standalone headset for the training programme.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 115°, from 28 models that publish the figure.
Median for this class: 243 g, from 18 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Canon
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2022-04-21
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2022
- AvailabilityWhether you can still order it new today.
- On sale
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: not published by the manufacturer
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- Panel: not published by the manufacturer
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Optics: not published by the manufacturer
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 1920x2160
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 120 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 58° horizontal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: not published by the manufacturer
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: not published by the manufacturer
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- 158 g
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- 58° horizontal · 60° vertical
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: not published by the manufacturer
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: not published by the manufacturer
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: not published by the manufacturer
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: not published by the manufacturer
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- Subpixel layout: not published by the manufacturer
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: not published by the manufacturer
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Colour
- Passthrough camerasResolution, density and frame rate of that camera feed.
- 60 fps
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- 57–76 mm
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: not published by the manufacturer
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: not published by the manufacturer
- DimensionsWidth, height and depth of the device itself.
- 158 × 86 × 38 mm
- Weight with strapWith the strap it ships with — the weight you actually wear.
- 359 g
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Rigid halo strap
- MaterialsShell and facial interface, in the vendor’s words.
- plastic
- ColoursColours the manufacturer sells it in.
- Grey
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: not published by the manufacturer
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- inside-out spatial-feature alignment, optional Vicon / OptiTrack / VRPN optical sensors
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Base stations: not published by the manufacturer
- Tracking camerasHow many cameras it uses to know where it is.
- 2
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: not published by the manufacturer
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: not published by the manufacturer
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- Yes
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- Face tracking: not published by the manufacturer
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- Body tracking: not published by the manufacturer
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- No
- Controller modelThe manufacturer's own name for the controller.
- Controller model: not published by the manufacturer
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- None (hands only)
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Finger tracking on the controller: not published by the manufacturer
- Controller inputsButtons, sticks and triggers the controller offers.
- Controller inputs: not published by the manufacturer
- Controller hapticsVibration feedback in the hand.
- Controller haptics: not published by the manufacturer
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Controller power: not published by the manufacturer
- Controller weightOne controller, as the vendor weighs it.
- Controller weight: not published by the manufacturer
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: not published by the manufacturer
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: not published by the manufacturer
- CPUCores and clocks, where the manufacturer publishes them.
- CPU: not published by the manufacturer
- GPUThe graphics part of the chip.
- GPU: not published by the manufacturer
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- Memory: not published by the manufacturer
- SD card slotWhether storage can be added with a card.
- SD card slot: not published by the manufacturer
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- Battery: not published by the manufacturer
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): not published by the manufacturer
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- Battery capacity (mAh): not published by the manufacturer
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: not published by the manufacturer
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: not published by the manufacturer
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: not published by the manufacturer
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: not published by the manufacturer
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: not published by the manufacturer
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- Yes
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: not published by the manufacturer
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: not published by the manufacturer
- PortsPhysical sockets and charging contacts.
- Mini DisplayPort · proprietary 10 m interface cable
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: not published by the manufacturer
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: not published by the manufacturer
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Over a cable (MREAL interface unit / BX-40 Interface Box Kit)
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Audio: not published by the manufacturer
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Microphone: not published by the manufacturer
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: not published by the manufacturer
- Price bandThe band it sits in, rather than a price that goes stale.
- Enterprise
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- Launch price: not published by the manufacturer
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: not published by the manufacturer
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: not published by the manufacturer
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): not published by the manufacturer
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): not published by the manufacturer
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): not published by the manufacturer
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): not published by the manufacturer
Who this device is for
Japanese manufacturers doing physical design review, prototype validation and assembly verification, who need CG registered onto real hardware at arm's length and already own the workstations and the MREAL Platform licence. It is not a headset for a training department, and outside Japan it is effectively unavailable.
What is missing, and what the manufacturer does not publish
Canon does not publish the display panel technology, any audio or microphone hardware, or a list price: both Mogura VR and Road to VR record the price as open, quoted per project. Canon's own spec sheet calls for a PCI Express Gen3 x4 interface card while the Daitron distributor listing says PCI Express 2.0 x4, and we could not resolve which applies to a 2026 order. As of August 2026 Canon has announced no end-of-sale or end-of-support date for the X1, so its shipping status rests on Canon ITS still listing it, not on a dated statement.
Canon MREAL X1 — frequently asked questions
- Can Canon MREAL X1 run standalone VR training courses?
- No. The X1 has no computer or operating system of its own: the display hangs off a 10 m proprietary cable to an interface unit and a Windows workstation running Canon's MREAL Platform. Android training applications, including ours, cannot be installed on it. Use a standalone headset for training and keep the X1 for CAD overlay work.
- Why is the MREAL X1 field of view only 58 degrees?
- Because it is a close-range video see-through MR device, not a VR headset. Canon states about 58 degrees horizontal by 60 degrees vertical, with camera and CG at 60 fps against a 120 Hz panel. That is enough to lay a CAD model onto a part in front of you, but the visible frame edge makes it unsuitable for immersive scenario training.
- Can you buy the Canon MREAL X1 in Europe?
- We found no European sales channel. Canon ITS sells and supports MREAL in Japan, all the documentation is Japanese, and the price is quoted as open rather than published. A European buyer would be importing hardware with no local support, on top of the required workstation and the MREAL Platform licence.
