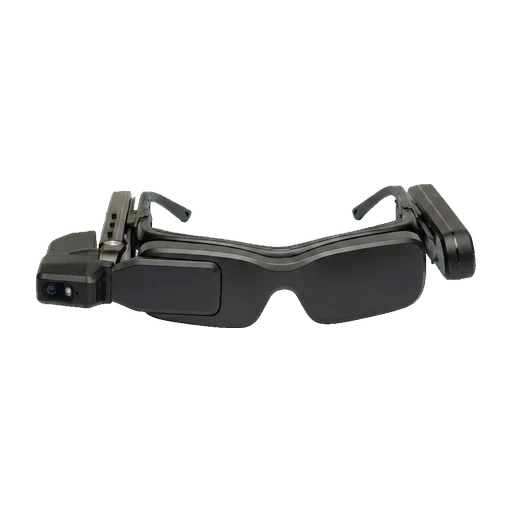

Vuzix M4000 — specification and verdict
The M4000 replaces the M400's opaque panel with a waveguide and a projector, so the worker looks through the lens rather than around a screen. The image is a modest 854×480 at 28°, and above 1000 nits — the point here is not resolution but the unobstructed view, which matters where a blocked eye is a safety issue.
Android with partner device management, like the M400, so an ordinary application package installs and manages the same way. The one thing to check before committing: it is still on Android 11, so a minimum SDK or security-patch requirement can rule it out where the M400 would pass.
Pick it over the M400 only when seeing through the lens genuinely matters — inspection work, driving, anything where an occluded eye is a hazard. Otherwise the M400 gives a sharper image, a newer platform and a longer runway.
How it compares within its class
The axis runs from the lowest to the highest published figure among the AR — industrial devices in this catalogue. The grey tick is the median of that class.
Median for this class: 24°, from 12 models that publish the figure.
Median for this class: 175 g, from 11 models that publish the figure.
Median for this class: 480 min, from 11 models that publish the figure.
Median for this class: 2000 nits, from 6 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Vuzix
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- AR — industrial
- Device typeWhere the computing happens, and therefore what you need to run it.
- Standalone AR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2020-01-08
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2020
- AvailabilityWhether you can still order it new today.
- On sale
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: not published by the manufacturer
- DisplayHow the image is produced. "No display" is a real answer in this category, not a gap.
- Waveguide
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- One eye
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- Resolution per eye: not published by the manufacturer
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- Refresh rate: not published by the manufacturer
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 28°
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: not published by the manufacturer
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- 1000 nits
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- 99 g
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- Visible field of view: not published by the manufacturer
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: not published by the manufacturer
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: not published by the manufacturer
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: not published by the manufacturer
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: not published by the manufacturer
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- Subpixel layout: not published by the manufacturer
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: not published by the manufacturer
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: not published by the manufacturer
- DimensionsWidth, height and depth of the device itself.
- Dimensions: not published by the manufacturer
- Weight with strapWith the strap it ships with — the weight you actually wear.
- Weight with strap: not published by the manufacturer
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Glasses frame
- MaterialsShell and facial interface, in the vendor’s words.
- Plastic
- ColoursColours the manufacturer sells it in.
- Black
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- No
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- 3DoF (rotation only)
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: not published by the manufacturer
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: not published by the manufacturer
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: not published by the manufacturer
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- No
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- None
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- Controllers included: not published by the manufacturer
- Controller modelThe manufacturer's own name for the controller.
- Controller model: not published by the manufacturer
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- Controller tracking: not published by the manufacturer
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Finger tracking on the controller: not published by the manufacturer
- Controller inputsButtons, sticks and triggers the controller offers.
- Controller inputs: not published by the manufacturer
- Controller hapticsVibration feedback in the hand.
- Controller haptics: not published by the manufacturer
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Controller power: not published by the manufacturer
- Controller weightOne controller, as the vendor weighs it.
- Controller weight: not published by the manufacturer
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: not published by the manufacturer
- Where it computesWhether the device computes on its own or depends on a phone, PC or belt-worn puck.
- Standalone (own computer)
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: not published by the manufacturer
- CPUCores and clocks, where the manufacturer publishes them.
- Octa-core Kryo (2 x 2.52 GHz, 6 x 1.7 GHz)
- GPUThe graphics part of the chip.
- Adreno 615
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- Memory: not published by the manufacturer
- PlatformThe platform an application is built against — and what an MDM has to speak.
- Android 11
- SD card slotWhether storage can be added with a card.
- No
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- 120 min
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): not published by the manufacturer
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- 135 mAh
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: not published by the manufacturer
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: not published by the manufacturer
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: not published by the manufacturer
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: not published by the manufacturer
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: not published by the manufacturer
- Third-party appsHow a third party's application reaches the device: an ordinary Android package, a vendor-only SDK, or not at all.
- Ordinary Android app (APK)
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- Suitable for training: not published by the manufacturer
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- Yes
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- Business tier: not published by the manufacturer
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- IP67 · IEC 60601-1 · IEC 60601-1-2
- PortsPhysical sockets and charging contacts.
- USB 3.1 Gen 2 Type-C
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- WiFi 802.11 a/b/g/n/ac
- BluetoothFor controllers, headphones and accessories.
- Bluetooth 5.0 BR/EDR/LE
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: not published by the manufacturer
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Built-in speakers
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: not published by the manufacturer
- CameraA camera is what makes a remote expert call and photo documentation possible.
- Yes
- Price bandThe band it sits in, rather than a price that goes stale.
- Enterprise
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- Launch price: not published by the manufacturer
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: not published by the manufacturer
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: not published by the manufacturer
Who this device is for
The M4000 is the see-through member of the Vuzix industrial line: a waveguide display at 28 degrees, so information sits in front of the world rather than beside it, on the same Android base that accepts ordinary APKs. It suits inspection and guided assembly where the overlay needs to line up with what you are looking at.
How it differs from its predecessor
Against the M400 it trades brightness for see-through optics: 1000 nits against 2000, and a waveguide instead of a micro-OLED screen at the edge of vision. Both are monocular, both run Android and both take standard applications — the choice is whether the information should be over the work or next to it.
What is missing, and what the manufacturer does not publish
A waveguide loses brightness and contrast in direct sunlight, and 1000 nits is half what the M400 offers. Battery is again around two hours, there is no 6DoF tracking, and our applications do not run on it. Vuzix publishes the resolution only in the product PDF, which is the source our table uses.
Vuzix M4000 — frequently asked questions
- What is the practical difference between a waveguide and a monocular screen?
- A waveguide projects the image into the lens so it appears over what you are looking at; a monocular screen sits at the edge of vision and you glance at it. For overlaying instructions on a component the waveguide wins; for reading a checklist in bright sunlight, the brighter screen usually does.
- Is the Vuzix M4000 suitable for medical or cleanroom use?
- Vuzix lists IEC 60601-1 and 60601-1-2 conformity for it, which is the electrical-safety and EMC standard family for medical electrical equipment, and the M400 adds a cleanroom classification. Always confirm the exact certificate against your own compliance requirement before deployment.
