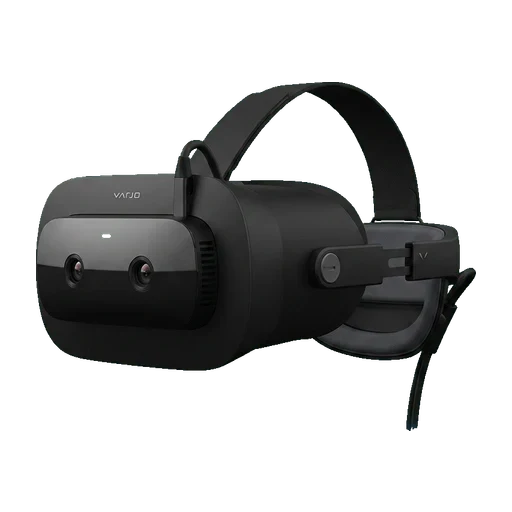

Varjo XR-1 Developer Edition — specification and verdict
The XR-1 was Varjo's answer to a question nobody else was answering in 2019: what if the camera feed were sharp enough to work in. Two 12-megapixel cameras at 90 Hz fed the same bionic display as the VR-2, with photon-to-photon latency Varjo first put under 15 milliseconds and later revised to under 20. That let an engineer look at a real cockpit and a virtual instrument panel in the same view, which is why it sold into simulation and design review rather than to anyone else. The cost of entry was brutal even by professional standards — 9,995 dollars for the headset, 1,995 a year for the mandatory software subscription, plus two to four SteamVR base stations and a Thunderbolt 3 workstation to drive it.
Budget for four things, not one. The headset was 9,995 dollars; Varjo's mandatory Software and Support service added 1,995 a year, stated in the same sentence as the price; tracking needs two to four SteamVR base stations mounted in the room and bought separately; and the host must offer a Thunderbolt 3 port alongside two DisplayPort 1.2 outputs, which in 2019 meant a specific workstation rather than a gaming PC. Controllers are not in the box either. Support has stopped: Varjo recommends Varjo Base 3.7.2 as the last release for this generation and has published no dated end-of-life notice, unlike the XR-3 and VR-3 that followed.
Do not buy, and do not plan a rollout around one. It is a landmark device — the first headset where the camera feed was sharp enough to read real instruments through — but it is a SteamVR peripheral for simulation and design review, our Android courses never ran on it, and its total cost of ownership ran to roughly 12,000 dollars before base stations and a workstation. If you own one and it still works, keep it for the job it was bought for. If you are specifying mixed-reality hardware now, this device's descendants are the XR-4 Focal Edition and XR-4 Secure Edition.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 110°, from 39 models that publish the figure.
Median for this class: $899, from 45 models that publish the figure.
Controllers and hand tracking
Controller
6DoF
Sold separatelyHow it is tracked
Base stations (Lighthouse)
Base stations sweep the room with lasers. Coverage comes from where the boxes are mounted rather than from what the headset can see — occlusion stops being a problem, and the boxes are a second purchase.
Other controllers
Any SteamVR (Lighthouse) controller
Index Controller · HTC Vive controller
Bare hands
No hand tracking — a controller is the only way in.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Varjo
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2019-05-29
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2019
- AvailabilityWhether you can still order it new today.
- Discontinued
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: not published by the manufacturer
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- OLED
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Optics: not published by the manufacturer
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 1440x1600
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 60/90 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 87°
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: not published by the manufacturer
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: not published by the manufacturer
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- Weight: not published by the manufacturer
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- Visible field of view: not published by the manufacturer
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: not published by the manufacturer
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: not published by the manufacturer
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: not published by the manufacturer
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: not published by the manufacturer
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- Subpixel layout: not published by the manufacturer
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: not published by the manufacturer
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Colour
- Passthrough camerasResolution, density and frame rate of that camera feed.
- 90 fps
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Motorised
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- IPD range: not published by the manufacturer
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: not published by the manufacturer
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: not published by the manufacturer
- DimensionsWidth, height and depth of the device itself.
- Dimensions: not published by the manufacturer
- Weight with strapWith the strap it ships with — the weight you actually wear.
- 1050 g
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Headband
- MaterialsShell and facial interface, in the vendor’s words.
- Materials: not published by the manufacturer
- ColoursColours the manufacturer sells it in.
- Colours: not published by the manufacturer
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: not published by the manufacturer
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- outside-in 6DoF (SteamVR base stations, 2-4 required, sold separately)
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Required
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: not published by the manufacturer
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: not published by the manufacturer
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Yes
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- Yes
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- No
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- None
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- No
- Controller modelThe manufacturer's own name for the controller.
- Controller model: not published by the manufacturer
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Controller tracking methodWhat establishes where the controller is. It decides whether the controller keeps working behind your back or down at your hip — “6DoF” on its own does not say.
- Base stations (Lighthouse)
- Other controllersWhether the headset works with controllers other than the ones it ships with.
- Any SteamVR (Lighthouse) controller — Index Controller · HTC Vive controller
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Finger tracking on the controller: not published by the manufacturer
- Controller inputsButtons, sticks and triggers the controller offers.
- Controller inputs: not published by the manufacturer
- Controller hapticsVibration feedback in the hand.
- Controller haptics: not published by the manufacturer
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Controller power: not published by the manufacturer
- Controller weightOne controller, as the vendor weighs it.
- Controller weight: not published by the manufacturer
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: not published by the manufacturer
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- Yes
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: not published by the manufacturer
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- FCC 2AROD-003 · CE 2014/53/EU · RoHS 2011/65/EU · ICES-003
- PortsPhysical sockets and charging contacts.
- Thunderbolt 3 · USB Type-A 3.0 · DisplayPort 1.2
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: not published by the manufacturer
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: not published by the manufacturer
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: not published by the manufacturer
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Audio: not published by the manufacturer
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Microphone: not published by the manufacturer
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: not published by the manufacturer
- Price bandThe band it sits in, rather than a price that goes stale.
- Enterprise
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $9995
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: not published by the manufacturer
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: not published by the manufacturer
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): not published by the manufacturer
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): not published by the manufacturer
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): not published by the manufacturer
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): not published by the manufacturer
Who this device is for
Simulator builders, cockpit and vehicle designers and human-factors researchers between 2019 and 2022 who needed a real cockpit and a virtual display in one view, and had a Thunderbolt 3 workstation and a tracked room. Today it is a reference point rather than an option.
What is missing, and what the manufacturer does not publish
Varjo published no dimensions, no IPD range in millimetres and no microphone for the XR-1, in the product pages, the Quick Guide or the Safety PDF. More usefully, Varjo revised three figures between its 2019 and 2020 pages and both sets are its own: passthrough latency moved from under 15 milliseconds to under 20, weight from 1065 to 1050 grams without the counterweight, and the camera viewing angle from 82 by 82 degrees to 94 degrees circular. We carry the later values. There is no dated end-of-support notice, only a recommendation to stay on Varjo Base 3.7.2, and the 87-degree field of view is published without an axis.
Varjo XR-1 Developer Edition — frequently asked questions
- How good was the Varjo XR-1 passthrough compared to a modern headset?
- Different rather than worse. Two 12-megapixel cameras ran at 90 Hz into a display Varjo rated at over 60 pixels per degree in the focus area, which in 2019 meant you could read a physical instrument label through the headset — something mainstream passthrough still struggles with. The trade-offs were the ones a professional device accepts: a tether, base stations on the wall, a Thunderbolt 3 workstation, and about 1.3 kilograms on your head with the counterweight fitted.
- Why does the XR-1 latency figure differ between sources?
- Because Varjo changed it. The 2019 product page and the announcement both state under 15 milliseconds photon to photon; the 2020 page consistently states under 20, and the revision looks deliberate rather than a typo since the older figure appears nowhere on it. Both numbers are Varjo's own. We report the later one and record the earlier as historical, rather than choosing the flattering figure.
- Can I still use a Varjo XR-1 today?
- If it already works, yes, with limits. Varjo recommends Varjo Base 3.7.2 as the last release for this generation, so the software is frozen, and there is no dated support commitment. It still needs two to four SteamVR base stations, SteamVR controllers you supply yourself, and a host with a Thunderbolt 3 port plus two DisplayPort 1.2 outputs. Our training courses never ran on it: they are Android standalone builds, not SteamVR.
