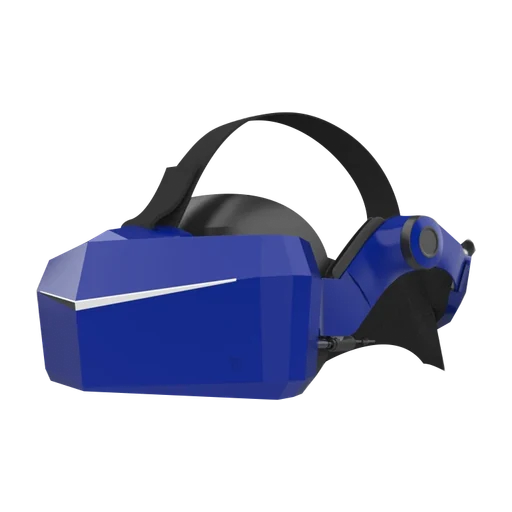

Pimax Vision 8KX — specification and verdict
The Vision 8KX drives 3840x2160 per eye at 90 Hz over DisplayPort 1.4, the highest text legibility of any headset in this catalogue: procedure cards, gauge markings and small labels stay readable without leaning in. The 159-degree horizontal field of view is far wider than the usual 100 to 110 degrees, so a trainee catches peripheral hazards instead of looking through a letterbox. The price of that is the tether and the tracking: it needs a PC with a DisplayPort 1.4 output and two SteamVR 2.0 base stations mounted in the room. There is no passthrough, no hand tracking and no eye tracking, so every interaction goes through Valve Index controllers, which are not in the 1299 USD headset box.
There is no fleet story here at all. The 8KX is a PC peripheral, so what you actually manage is the workstation behind it, with whatever MDM already covers your Windows estate; Pimax offers no device management, no kiosk mode and no enterprise licensing. Each seat means a headset, a PC, two base stations on stands or wall mounts and a pair of Index controllers, which is why the full bundle was listed at 1849 USD rather than 1299 USD. The facial interface is foam, so hygiene between trainees means wipes or a spare interface, and Pimax sells into Europe by direct shipping rather than through a distributor network in Poland or Germany.
Do not buy this for a training programme. Our courses are standalone Android applications and do not run on a PC-tethered headset at all, and Pimax now carries the 8KX only on its outlet page, marked out of stock and final sale. If somebody in the organisation genuinely needs 3840x2160 per eye for CAD or simulator work on a PC, it remains a credible display; for VR training, buy a standalone headset instead.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 115°, from 26 models that publish the figure.
Median for this class: 285 g, from 17 models that publish the figure.
Median for this class: $799, from 32 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Pimax
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2018-11-01
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2019
- AvailabilityWhether you can still order it new today.
- Discontinued
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: Specifications checked against the manufacturer's page on 2026-08-08.
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- LCD
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Fresnel lenses
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 3840x2160
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 90 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 159° horizontal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: Specifications checked against the manufacturer's page on 2026-08-08.
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- 500 g
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- 159° horizontal · 103° vertical
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- 160.29° horizontal · 153.42° diagonal
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- 82.89°
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- RGB stripe · 3 subpixels per pixel
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: Specifications checked against the manufacturer's page on 2026-08-08.
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Passthrough: Specifications checked against the manufacturer's page on 2026-08-08.
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- 60–72 mm
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: Specifications checked against the manufacturer's page on 2026-08-08.
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: Specifications checked against the manufacturer's page on 2026-08-08.
- DimensionsWidth, height and depth of the device itself.
- 280 × 108 × 136 mm
- Weight with strapWith the strap it ships with — the weight you actually wear.
- 850 g
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Rigid halo strap
- MaterialsShell and facial interface, in the vendor’s words.
- plastic · foam facial interface
- ColoursColours the manufacturer sells it in.
- Black · Blue
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: Specifications checked against the manufacturer's page on 2026-08-08.
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- SteamVR 2.0 base stations
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Required
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking rateHow often position is recalculated. Higher is steadier.
- 1000 Hz
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: Specifications checked against the manufacturer's page on 2026-08-08.
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- Face tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- Body tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- No
- Controller modelThe manufacturer's own name for the controller.
- Valve Index Controller
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- 6DoF
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Full
- Controller inputsButtons, sticks and triggers the controller offers.
- capacitive thumbstick · trackpad · capacitive face buttons · capacitive index trigger · pressure-sensitive grip
- Controller hapticsVibration feedback in the hand.
- Yes
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Built-in rechargeable
- Controller weightOne controller, as the vendor weighs it.
- 196 g
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: Specifications checked against the manufacturer's page on 2026-08-08.
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: Specifications checked against the manufacturer's page on 2026-08-08.
- CPUCores and clocks, where the manufacturer publishes them.
- CPU: Specifications checked against the manufacturer's page on 2026-08-08.
- GPUThe graphics part of the chip.
- GPU: Specifications checked against the manufacturer's page on 2026-08-08.
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- Memory: Specifications checked against the manufacturer's page on 2026-08-08.
- SD card slotWhether storage can be added with a card.
- SD card slot: Specifications checked against the manufacturer's page on 2026-08-08.
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- Battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- Battery capacity (mAh): Specifications checked against the manufacturer's page on 2026-08-08.
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: Specifications checked against the manufacturer's page on 2026-08-08.
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: Specifications checked against the manufacturer's page on 2026-08-08.
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: Specifications checked against the manufacturer's page on 2026-08-08.
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- No
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: Specifications checked against the manufacturer's page on 2026-08-08.
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: Specifications checked against the manufacturer's page on 2026-08-08.
- PortsPhysical sockets and charging contacts.
- DisplayPort 1.4 · USB 3.0 · headphone jack
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: Specifications checked against the manufacturer's page on 2026-08-08.
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: Specifications checked against the manufacturer's page on 2026-08-08.
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: Specifications checked against the manufacturer's page on 2026-08-08.
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Built-in speakers · Headphone jack
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Yes
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: Specifications checked against the manufacturer's page on 2026-08-08.
- Price bandThe band it sits in, rather than a price that goes stale.
- Premium
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $1299
- Price by configurationWhat each configuration cost at launch.
- Headset only $1299 · With Valve Index controllers $1599 · With controllers and two SteamVR 2.0 base stations $1849
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: Specifications checked against the manufacturer's page on 2026-08-08.
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
Who this device is for
This is for PC simulation users - flight and racing simulators, design review, engineering visualisation - who already own a strong GPU and a room wired for base stations, and who value 3840x2160 per eye and 159 degrees of horizontal view more than they mind a cable. It is not for a training team that wants to hand a headset to somebody and walk away.
What is missing, and what the manufacturer does not publish
Pimax publishes no end-of-production or end-of-support date for the 8KX, only an outlet entry, so how long firmware and PiTool updates continue is unknown and we left discontinuedYear and supportEndsOn empty. The launch date is contested: the reference sheet gives 2019-02-19, while Road to VR documented repeated slips and the headset reached buyers much later. The vertical field-of-view figures in that same sheet contradict each other, so we kept only the horizontal pair, and the advertised 200-degree diagonal is a marketing number rather than the 159 degrees horizontal recorded here.
Pimax Vision 8KX — frequently asked questions
- Do I need SteamVR base stations for the Pimax Vision 8KX?
- Yes. The 8KX has no inside-out cameras; it is tracked by two SteamVR 2.0 base stations that you mount in the corners of the room and power from mains. That is why Pimax listed a 1849 USD bundle with controllers and base stations next to the 1299 USD headset-only price. Without base stations the headset does not track at all.
- Will Skillsive VR training courses run on the Pimax Vision 8KX?
- No. Our courses are standalone Android applications and the 8KX has no onboard computer - it is a pair of panels driven over DisplayPort 1.4 and USB 3.0 by a Windows PC running SteamVR. There is no way to install our courses on it. Use a standalone Android headset for training and keep the 8KX for PC simulation work.
- Can you still buy a Pimax Vision 8KX in 2026?
- Not from Pimax as a current product. The Vision 8K X now appears only on the Pimax outlet page, flagged out of stock and sold as a final sale with no return or exchange, and newer Pimax headsets have taken its place. Anything you find in 2026 is leftover or second-hand stock with an unstated support horizon.
Compare this device
Consider these too
The nearest devices in the same class, ranked by availability and launch price — not by our opinion of them.
Specifications checked against the manufacturer's page on 2026-08-08. Manufacturer's specification
