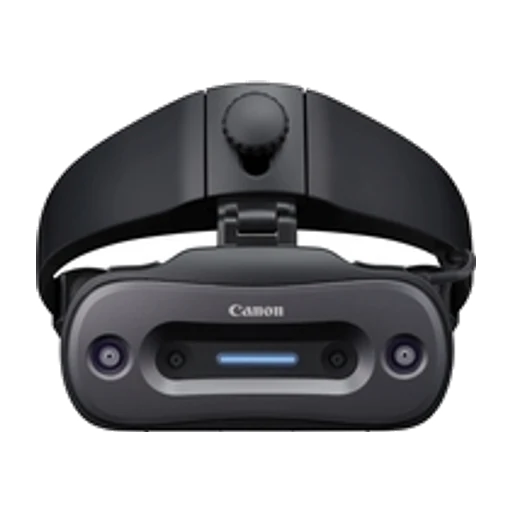

Canon MREAL S1 — specification and verdict
The MREAL S1 is not a training headset. It is a 137 g video see-through mixed-reality display that Canon sells into design review: two 1600x1200 panels at 120 Hz behind a narrow 45 x 34 degree field of view, with stereo cameras feeding a colour passthrough image so a full-scale CAD model can be checked against a real workshop. The narrow field means a trainee sees a letterbox of content surrounded by unaugmented reality, which is fine for judging a car interior mock-up and wrong for immersive procedure practice. There are no controllers in the box, so interaction is whatever the MREAL Platform software and hand tracking provide. Everything runs off a Windows workstation over Mini DisplayPort and a PCI Express card, so the wearer is tethered.
The S1 is sold in Japan through Canon IT Solutions and its distributors as part of an MREAL system, not as a headset you order on a card. Canon quotes an open price for the hardware and licenses the MREAL Platform software separately, and VRcompare put the headset alone at about USD 38,500 at announcement. The PC is a real line item: Canon's own MREAL Platform guidance calls for a Windows 10/11 workstation with a high core-count Core i9, 32 GB of memory and an RTX 3070 or RTX A5000 class GPU. There is no vendor MDM or kiosk mode, no fleet console and no per-seat app store, and we have found no European distribution for the S1, which makes a rollout in Poland or Germany a bespoke integration project.
Do not buy this for VR training. It is a tethered, controller-free, 45-degree-wide MR viewer built for design review inside Canon's own platform, our Android courses do not run on it, and the price is roughly two orders of magnitude above a standalone headset. If your requirement really is full-scale CAD review against a physical prototype, the S1 or its wider 58-degree sibling MREAL X1 is a serious tool; for anything a trainee has to practise, buy a standalone headset instead.
How it compares within its class
The axis runs from the lowest to the highest published figure among the VR — PC-tethered devices in this catalogue. The grey tick is the median of that class.
Median for this class: 115°, from 26 models that publish the figure.
Median for this class: 285 g, from 17 models that publish the figure.
Median for this class: $799, from 32 models that publish the figure.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Canon
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- VR — PC-tethered
- Device typeWhere the computing happens, and therefore what you need to run it.
- PC-powered VR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2020-10-01
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2021
- AvailabilityWhether you can still order it new today.
- On sale
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- Support ends: Specifications checked against the manufacturer's page on 2026-08-08.
- PanelThe screen type. micro-OLED gives deeper blacks and higher contrast; LCD is brighter and cheaper.
- micro-OLED
- OpticsThe lenses in front of the panel. Pancake stays sharp closer to the edges than older Fresnel, which decides how much a trainee has to aim their head to read something.
- Optics: Specifications checked against the manufacturer's page on 2026-08-08.
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 1600x1200
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 120 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 45° horizontal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: Specifications checked against the manufacturer's page on 2026-08-08.
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- 137 g
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- 45° horizontal · 34° vertical
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: Specifications checked against the manufacturer's page on 2026-08-08.
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: Specifications checked against the manufacturer's page on 2026-08-08.
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: Specifications checked against the manufacturer's page on 2026-08-08.
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- RGB stripe · 3 subpixels per pixel
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: Specifications checked against the manufacturer's page on 2026-08-08.
- PassthroughWhat the front cameras give you: colour, grayscale, or nothing.
- Colour
- Passthrough camerasResolution, density and frame rate of that camera feed.
- Passthrough cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- IPD adjustmentMatching lens spacing to the eyes. Motorised is fastest when one headset passes between people.
- Manual
- IPD rangeHow far the lenses travel to match eye spacing. A narrow range excludes part of any group of adults, which matters when one headset is shared.
- IPD range: Specifications checked against the manufacturer's page on 2026-08-08.
- Works with glassesWhether people who wear glasses can use it — fits over them, or takes prescription lens inserts.
- Works with glasses: Specifications checked against the manufacturer's page on 2026-08-08.
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Vision correction: Specifications checked against the manufacturer's page on 2026-08-08.
- DimensionsWidth, height and depth of the device itself.
- 154 × 74 × 37 mm
- Weight with strapWith the strap it ships with — the weight you actually wear.
- 338 g
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Rigid halo strap
- MaterialsShell and facial interface, in the vendor’s words.
- plastic
- ColoursColours the manufacturer sells it in.
- Grey
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: Specifications checked against the manufacturer's page on 2026-08-08.
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- inside-out 6DoF (video see-through MR)
- Base stationsWhether boxes have to be mounted on the walls before it works.
- Not needed
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: Specifications checked against the manufacturer's page on 2026-08-08.
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: Specifications checked against the manufacturer's page on 2026-08-08.
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- Yes*VRcompare
- Eye trackingThe headset knows where the trainee is looking. Enables sharper rendering where they look, and attention analytics.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- Face tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- Body tracking: Specifications checked against the manufacturer's page on 2026-08-08.
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- No
- Controller modelThe manufacturer's own name for the controller.
- Controller model: Specifications checked against the manufacturer's page on 2026-08-08.
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- None (hands only)
- Finger tracking on the controllerWhether the controller senses individual fingers, and how.
- Finger tracking on the controller: Specifications checked against the manufacturer's page on 2026-08-08.
- Controller inputsButtons, sticks and triggers the controller offers.
- Controller inputs: Specifications checked against the manufacturer's page on 2026-08-08.
- Controller hapticsVibration feedback in the hand.
- Controller haptics: Specifications checked against the manufacturer's page on 2026-08-08.
- Controller powerDisposable cells or a built-in rechargeable — a fleet question.
- Controller power: Specifications checked against the manufacturer's page on 2026-08-08.
- Controller weightOne controller, as the vendor weighs it.
- Controller weight: Specifications checked against the manufacturer's page on 2026-08-08.
- Other input methodsWays in beyond controllers and bare hands.
- Other input methods: Specifications checked against the manufacturer's page on 2026-08-08.
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: Specifications checked against the manufacturer's page on 2026-08-08.
- CPUCores and clocks, where the manufacturer publishes them.
- CPU: Specifications checked against the manufacturer's page on 2026-08-08.
- GPUThe graphics part of the chip.
- GPU: Specifications checked against the manufacturer's page on 2026-08-08.
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- Memory: Specifications checked against the manufacturer's page on 2026-08-08.
- SD card slotWhether storage can be added with a card.
- SD card slot: Specifications checked against the manufacturer's page on 2026-08-08.
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- Battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): Specifications checked against the manufacturer's page on 2026-08-08.
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- Battery capacity (mAh): Specifications checked against the manufacturer's page on 2026-08-08.
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: Specifications checked against the manufacturer's page on 2026-08-08.
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: Specifications checked against the manufacturer's page on 2026-08-08.
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: Specifications checked against the manufacturer's page on 2026-08-08.
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: Specifications checked against the manufacturer's page on 2026-08-08.
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- No
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- Yes
- Swappable facial interfaceRemovable, wipeable face padding. A consumable, and the difference between shared use and complaints.
- Swappable facial interface: Specifications checked against the manufacturer's page on 2026-08-08.
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- Certifications: Specifications checked against the manufacturer's page on 2026-08-08.
- PortsPhysical sockets and charging contacts.
- Mini DisplayPort · PCI Express x4
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- Wi-Fi: Specifications checked against the manufacturer's page on 2026-08-08.
- BluetoothFor controllers, headphones and accessories.
- Bluetooth: Specifications checked against the manufacturer's page on 2026-08-08.
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Over a cable
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Audio: Specifications checked against the manufacturer's page on 2026-08-08.
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Microphone: Specifications checked against the manufacturer's page on 2026-08-08.
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: Specifications checked against the manufacturer's page on 2026-08-08.
- Price bandThe band it sits in, rather than a price that goes stale.
- Enterprise
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $38500
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: Specifications checked against the manufacturer's page on 2026-08-08.
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: Specifications checked against the manufacturer's page on 2026-08-08.
- Comfort (from reviews)How it wears over a full session. Scored from agreement between independent reviewers, not from our own testing.
- Comfort (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Edge clarity (from reviews)Sharpness away from the centre of the lens. Scored from agreement between independent reviewers.
- Edge clarity (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Tracking reliability (from reviews)How tracking holds up in poor light and fast movement. Scored from agreement between independent reviewers.
- Tracking reliability (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
- Hand tracking quality (from reviews)How usable controller-free hand tracking is in a training scenario. Scored from agreement between reviewers.
- Hand tracking quality (from reviews): Specifications checked against the manufacturer's page on 2026-08-08.
Who this device is for
Automotive and heavy-industry design teams in Japan that already run Canon's MREAL Platform and need a 1:1 mixed-reality check of a CAD model against real hardware, with a workstation and an integrator behind them. Not for EHS or safety training departments, and not for anyone who needs more than one or two seats.
What is missing, and what the manufacturer does not publish
Canon publishes an open price rather than a figure, so the USD 38,500 in this record comes from VRcompare at announcement and no current street price could be confirmed. Canon does not name the panel technology; VRcompare records Micro LED, which our panel field cannot express exactly. Hand tracking is a VRcompare claim, not a line in Canon's specification table, and Canon's shared spec sheet lists a 55 to 78 mm interpupillary range across the MREAL Display line while VRcompare gives 57 to 76 mm for the S1, so we left the range out. Canon's maintenance table lists end-of-support dates for the older MD-10 and MD-20 displays but no production or support end date for the S1.
Canon MREAL S1 — frequently asked questions
- Can I run Skillsive VR training courses on the Canon MREAL S1?
- No. The MREAL S1 is a PC-tethered display driven from a Windows workstation through Canon's MREAL Platform, not an Android standalone headset, so our courses have no runtime on it. It also ships without controllers. Use a standalone Android headset for training and keep the S1 for the design-review work Canon built it for.
- Why does the Canon MREAL S1 cost around 38,500 dollars?
- The figure VRcompare recorded at announcement covers a low-volume industrial mixed-reality display with calibrated stereo passthrough cameras, sold as part of a Canon MREAL system rather than as a consumer product. Canon itself quotes an open price and adds the MREAL Platform software licence and a workstation on top. The comparison is with CAD review rigs, not with headsets.
- How wide is the field of view on the Canon MREAL S1 compared with the MREAL X1?
- Canon specifies about 45 degrees horizontal by 34 degrees vertical for the S1 and about 58 by 60 degrees for the X1, and describes the X1's display area as roughly 2.5 times that of the S1. The S1 is the smaller, lighter, more portable model at 338 grams with its head mount; the X1 is what you pick when the narrow window becomes the limiting factor.
Compare this device
Consider these too
The nearest devices in the same class, ranked by availability and launch price — not by our opinion of them.
Specifications checked against the manufacturer's page on 2026-08-08. Manufacturer's specification
Product and company names used here are the trademarks of their respective owners and appear only to identify the hardware being compared. We are not affiliated with, sponsored by or endorsed by any of these manufacturers. Illustrations are our own.
