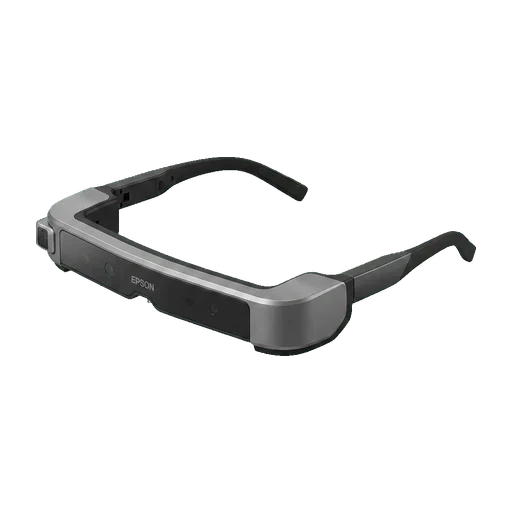

Epson Moverio BT-350 — specification and verdict
Epson says outright that the BT-350 carries all the internal specifications and key features of the BT-300, so the interesting part is everything outside the electronics. The temples extend and the nose pads adjust, because this was built for a museum or a factory where the same pair goes on twenty different heads in a morning. It is rated IPX-2 against light rain where the BT-300 has no rating at all, its storage is embedded rather than a card a visitor could remove, and Epson shipped Moverio Admin management software with an optional dock charging five units at once. Same 69-gram optics module, but 119 grams by the time the shared-use body is around it.
This is the half of the pair actually built for deployment. Epson Moverio Admin handles a fleet, the optional dock charges five devices, the embedded storage cannot be pulled out by a visitor, and the IPX-2 rating means light rain is not an incident. It cost 1,399 dollars against the BT-300's 779, and Epson also sold a separate BT-350 ANSI Z87.1 Edition at 1,199 with indoor and outdoor safety shields meeting that standard - the same hardware in certified eyewear, which is what a site requiring safety glasses needs. All three are marked discontinued on Epson's own store today.
Still not a training device in our sense - 23 degrees at 30 Hz shows text and telemetry, not a scene, and our courses are VR builds. But of everything in the Moverio line this is the one that understood shared use, and the ANSI edition understood safety compliance, which is more than most AR glasses manage even now. It is discontinued; for current hardware with the same intent look at the BT-45CS in this catalogue.
How it compares within its class
The axis runs from the lowest to the highest published figure among the AR — industrial devices in this catalogue. The grey tick is the median of that class.
Median for this class: 24°, from 14 models that publish the figure.
Median for this class: 188 g, from 14 models that publish the figure.
Median for this class: 480 min, from 12 models that publish the figure.
Median for this class: $1499, from 11 models that publish the figure.
Controllers and hand tracking
Operated by Touchpad on the temple.
Bare hands
No hand tracking.
Full specification
An em dash means the manufacturer does not publish that figure.
- ManufacturerWho makes it — and who you buy support from.
- Epson
- CategoryWhich kind of product this is. It decides which rows below make sense at all.
- AR — industrial
- Device typeWhere the computing happens, and therefore what you need to run it.
- Standalone AR
- AnnouncedThe day it was shown, which is not the day it shipped.
- 2017-05-31
- ReleasedYear the model went on sale. Older is not automatically worse in this category.
- 2017
- AvailabilityWhether you can still order it new today.
- Discontinued
- Support endsThe date the manufacturer stops supporting it. Decisive for a fleet you are about to buy.
- 2021-03-31
- DisplayHow the image is produced. "No display" is a real answer in this category, not a gap.
- Waveguide
- Eyes coveredOne eye or both. Over a full shift this is a real difference in fatigue.
- Both eyes
- Resolution per eyePixels delivered to each eye. Higher means small text and labels stay readable.
- 1280x720
- Refresh rateImages per second. Higher feels smoother and helps people prone to motion discomfort.
- 30 Hz
- Field of viewHow much of your view the image covers. Bigger is more immersive, not automatically better for work.
- 23° diagonal
- Pixel densityPixels per degree of view — the honest way to compare sharpness between a headset and a pair of glasses. Higher is sharper. Only shown where somebody published it; we never compute it ourselves.
- Pixel density: not published by the manufacturer
- BrightnessIn a plant or outdoors, brightness decides legibility more than resolution does.
- Brightness: not published by the manufacturer
- WeightThe device alone. Anything above roughly 150 g is felt within an hour.
- 119 g
- Visible field of viewWhat the eye actually sees through the optics, by axis.
- Visible field of view: not published by the manufacturer
- Rendered field of viewWhat the device draws. Never smaller than what you see.
- Rendered field of view: not published by the manufacturer
- Binocular overlapWhere both eyes see the same thing — this is where depth happens.
- Binocular overlap: not published by the manufacturer
- Average pixel densityPixels per degree across the image. More is sharper.
- Average pixel density: not published by the manufacturer
- Peak pixel densityThe sharpest point, usually the centre of the lens.
- Peak pixel density: not published by the manufacturer
- Subpixel layoutHow the coloured dots sit in a pixel. A stripe looks cleaner on text than PenTile.
- Subpixel layout: not published by the manufacturer
- Foveated renderingWhether detail is dropped outside where you look, to save performance.
- Foveated rendering: not published by the manufacturer
- Vision correctionHow somebody who wears glasses uses it, and in what dioptre range.
- Fits over glasses
- DimensionsWidth, height and depth of the device itself.
- 176 × 30 × 193.5 mm
- Weight with strapWith the strap it ships with — the weight you actually wear.
- Weight with strap: not published by the manufacturer
- Head strapSoft band or a rigid one. Decides how the weight sits over an hour.
- Glasses frame
- MaterialsShell and facial interface, in the vendor’s words.
- Materials: not published by the manufacturer
- ColoursColours the manufacturer sells it in.
- Colours: not published by the manufacturer
- Haptics in the headsetVibration in the headset itself, not in the controllers.
- Haptics in the headset: not published by the manufacturer
- TrackingWhether content stays put in the room (6DoF), follows head rotation (3DoF) or is simply fixed.
- 3DoF (rotation only)
- Tracking camerasHow many cameras it uses to know where it is.
- Tracking cameras: not published by the manufacturer
- Tracking rateHow often position is recalculated. Higher is steadier.
- Tracking rate: not published by the manufacturer
- Depth sensorA dedicated sensor for distance, on top of the cameras.
- Depth sensor: not published by the manufacturer
- Hand trackingWhether bare hands can operate the interface, without a controller or the phone.
- No
- Face trackingTracks facial expression — for avatars, not for training scenarios.
- Face tracking: not published by the manufacturer
- Body trackingHow much of the body the device knows about. Estimated legs are not tracked legs.
- Body tracking: not published by the manufacturer
- Controllers includedWhether motion controllers come in the box, or are bought separately — or the device is hands-only.
- Controllers included: not published by the manufacturer
- Controller tracking6DoF controllers track position and rotation, so a hand reaches in space; 3DoF only point. “None” means hands only.
- Controller tracking: not published by the manufacturer
- Other input methodsWays in beyond controllers and bare hands.
- Touchpad on the temple
- Where it computesWhether the device computes on its own or depends on a phone, PC or belt-worn puck.
- Standalone (own computer)
- ProcessorThe processor and memory inside. This is what the performance grade above is derived from.
- Processor: not published by the manufacturer
- CPUCores and clocks, where the manufacturer publishes them.
- Intel Atom x5 1.44 GHz quad-core
- GPUThe graphics part of the chip.
- GPU: not published by the manufacturer
- MemoryRAM on the device. Together with the chipset it sets how complex a scene can be.
- 2 GB
- PlatformThe platform an application is built against — and what an MDM has to speak.
- Android 5.1
- StorageOn-board space for downloaded courses. More matters for an offline library in several languages.
- 16 GB
- SD card slotWhether storage can be added with a card.
- SD card slot: not published by the manufacturer
- BatteryRuntime as the manufacturer states it. A hot-swappable pack matters more than the figure.
- 360 min
- Battery capacity (Wh)Energy in the cell. Bigger is longer, given the same power draw.
- Battery capacity (Wh): not published by the manufacturer
- Battery capacity (mAh)The same fact in the other unit vendors use. We never convert between the two.
- 2950 mAh
- Charge timeFrom empty to full. Rarely stated by the manufacturer, so it usually comes from whoever timed it.
- Charge time: not published by the manufacturer
- ChargerPower of the supplied charger — it decides the charge time above.
- Charger: not published by the manufacturer
- External batteryBattery on a cable or a puck instead of on the head.
- External battery: not published by the manufacturer
- Charging caseExtra runtime carried in the case the glasses ship with.
- Charging case: not published by the manufacturer
- Hot-swap batteryWhether a charged battery can replace the empty one without ending the session. This is what decides if a headset can hold an all-day training station.
- Hot-swap battery: not published by the manufacturer
- Third-party appsHow a third party's application reaches the device: an ordinary Android package, a vendor-only SDK, or not at all.
- Ordinary Android app (APK)
- Runs Skillsive appsOur own statement about whether Skillsive training applications run on it today.
- No
- Suitable for trainingOur judgement on whether it survives real deployment: comfort, hygiene, fleet management.
- No
- Kiosk mode / MDMVendor tooling to enrol devices, push an app and lock the headset to it. Practically required above ten devices.
- Yes
- Business tierAn official business tier, so devices belong to the company rather than to employees’ personal accounts.
- Yes
- CertificationsIndustrial certifications stated on the manufacturer's own page. Empty means unconfirmed, never "probably fine".
- IPX-2
- PortsPhysical sockets and charging contacts.
- Micro-USB 2.0 · 3.5 mm headphone jack
- Wi-FiThe Wi-Fi generation — it decides how well wireless streaming holds up.
- 5
- BluetoothFor controllers, headphones and accessories.
- 4.1
- Video from a computerWhether a computer can drive it, over a cable or wirelessly.
- Video from a computer: not published by the manufacturer
- AudioBuilt-in sound. Matters most where somebody has to hear a remote expert while working.
- Headphone jack
- MicrophoneBuilt-in microphone — the other half of talking to a remote expert.
- Microphone: not published by the manufacturer
- MicrophonesHow many. An array picks a voice out of a noisy hall; one does not.
- Microphones: not published by the manufacturer
- CameraA camera is what makes a remote expert call and photo documentation possible.
- Yes
- Price bandThe band it sits in, rather than a price that goes stale.
- Enterprise
- Launch priceThe manufacturer's launch price. Fixed history, so it never goes stale.
- $1399
- Price by configurationWhat each configuration cost at launch.
- Price by configuration: not published by the manufacturer
- Price todayApproximate current net price in USD — a general figure, since these barely differ between regions once tax is stripped out. A snapshot from the date shown, not an offer.
- Price today: not published by the manufacturer
Who this device is for
Museums, visitor centres and industrial sites that hand the same glasses to a stream of people and need to manage them centrally. The ANSI Z87.1 edition extended that to sites where safety eyewear is mandatory. Today, an operator maintaining an existing installation.
What is missing, and what the manufacturer does not publish
Epson publishes no brightness figure for this generation, and no end-of-support date could be obtained because its technical site blocks automated access. Only the water rating is documented - IPX-2 for both the headset and the controller in its casing. Note that a separate BT-350 ANSI Z87.1 Edition exists at its own model code and price, and that Epson also sold a BT-300 Drone FPV Edition; neither has its own record here, because both are the same electronics in different eyewear rather than different hardware.
Epson Moverio BT-350 — frequently asked questions
- Is the BT-350 ANSI edition a different device?
- No, it is the same BT-350 in certified safety eyewear. Epson describes it as designed to be worn in environments that require safety glasses, with indoor and outdoor safety shields that meet ANSI Z87.1 requirements, and sold it at 1,199 dollars under its own model code. Because the electronics are identical we do not give it a separate record - but if your site mandates safety eyewear, that edition is the one to source, and the standard BT-350 will not satisfy the requirement.
- Why does the BT-350 weigh so much more than the BT-300?
- Because the difference between them is entirely body. The optics and electronics are the same, and Epson says so; the BT-350 adds extendable temples, adjustable nose pads and a casing rated IPX-2, all of which exist so the same pair can be fitted to one head after another and survive being handled all day. That takes it from 69 grams to 119. For a device worn for twenty minutes at a time by a visitor, that trade is the right way round.
